Shack Platform

An integrated drilling setup designed for more workspace, safer handling, and efficient operation.

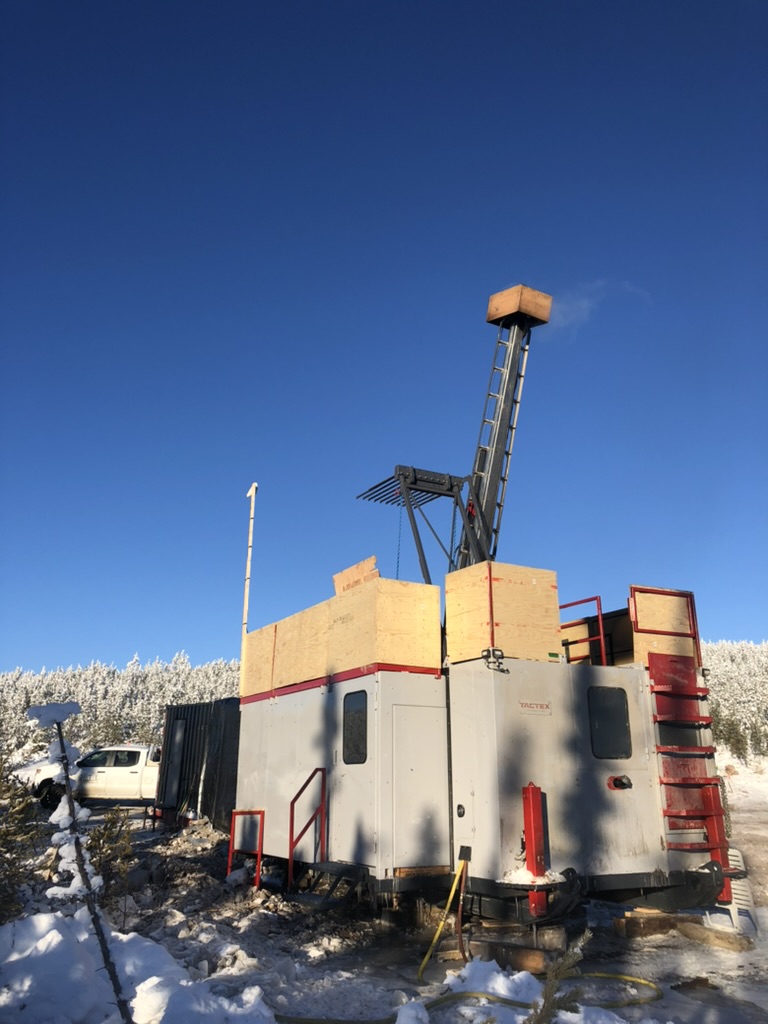

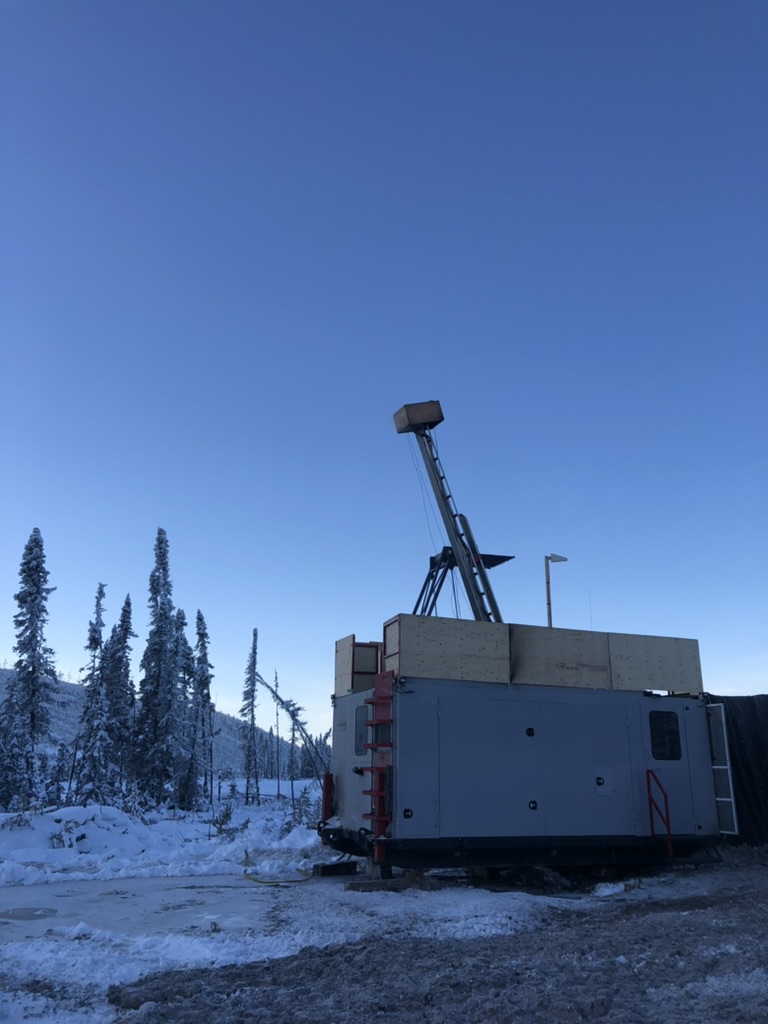

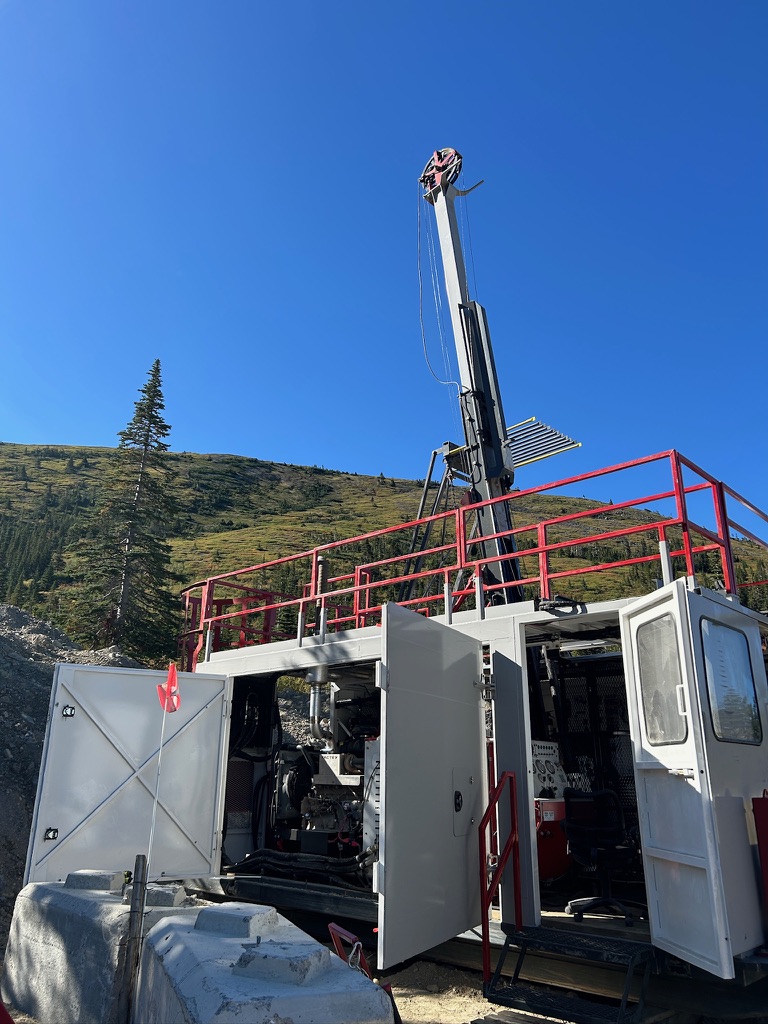

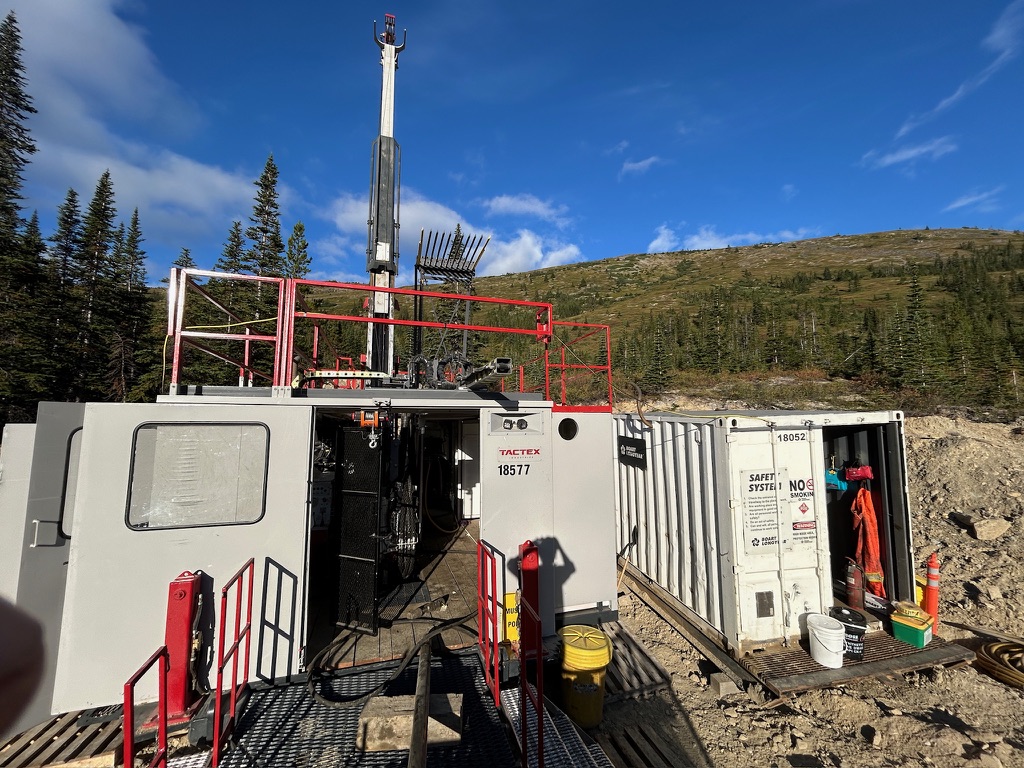

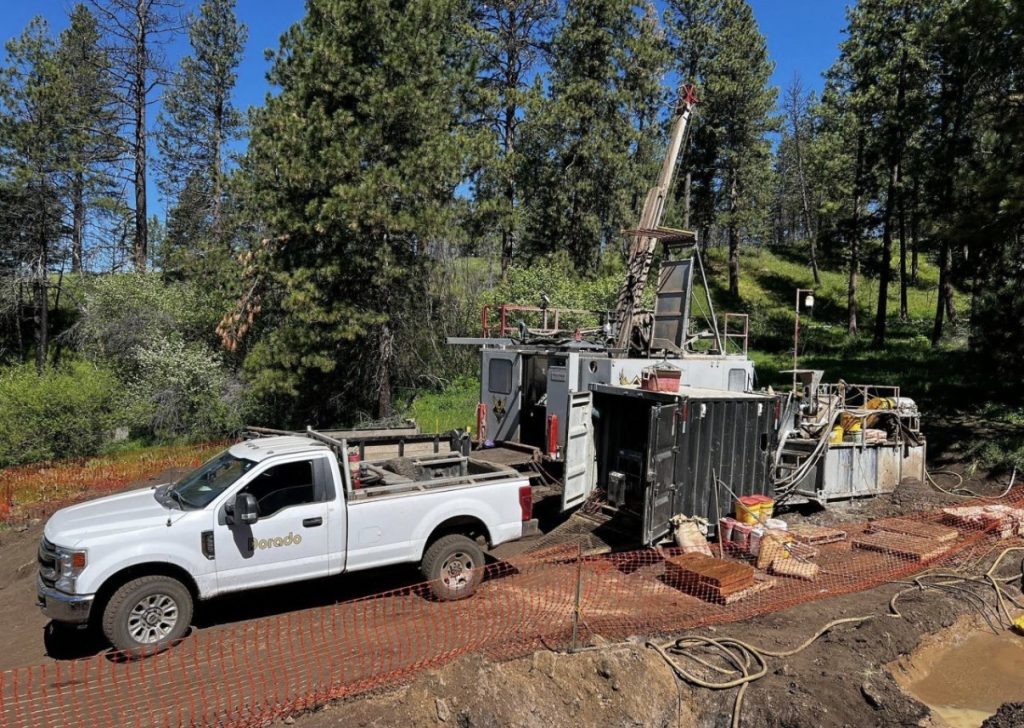

X-10 Drill Shack Platform

We’ve taken the X-10 base model and integrated it with a shack platform to level-up your next project.

Download PDF

key features at a glance:

  • Hydraulic slide-out for additional workspace
  • AVD rod handler
  • Hydraulic leveling cylinders, guarded by serrated dozer teeth
  • Hydraulic tilt rod rack
  • Custom lighting, fuel tank, safety railings, and pony walls

Features

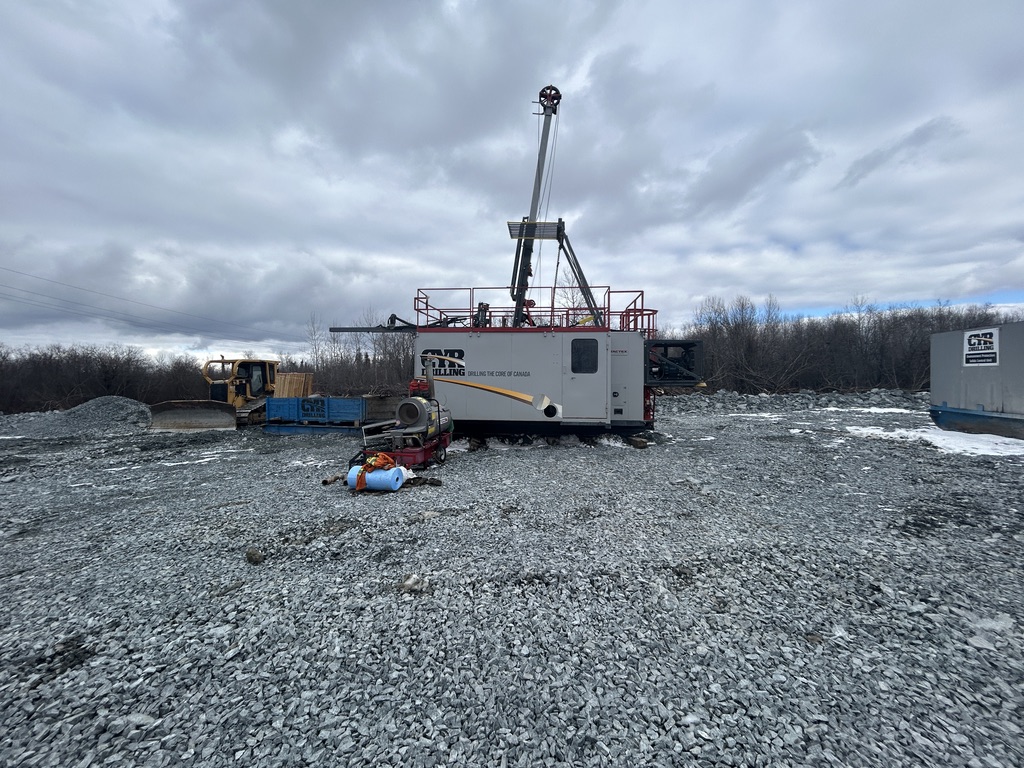

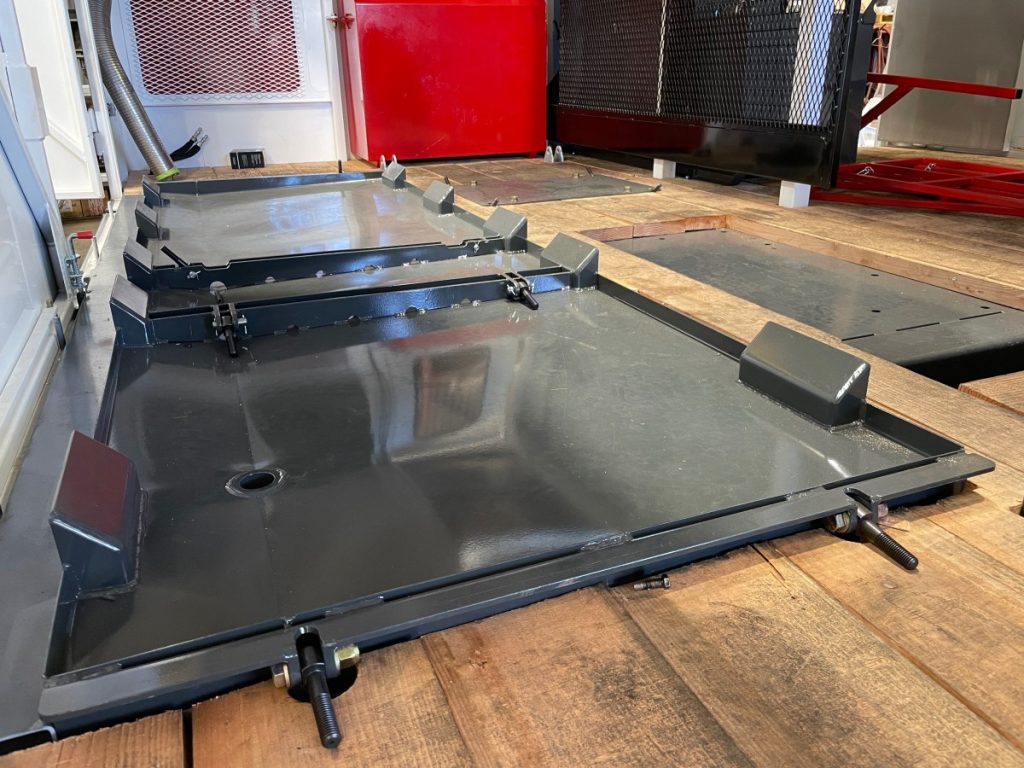

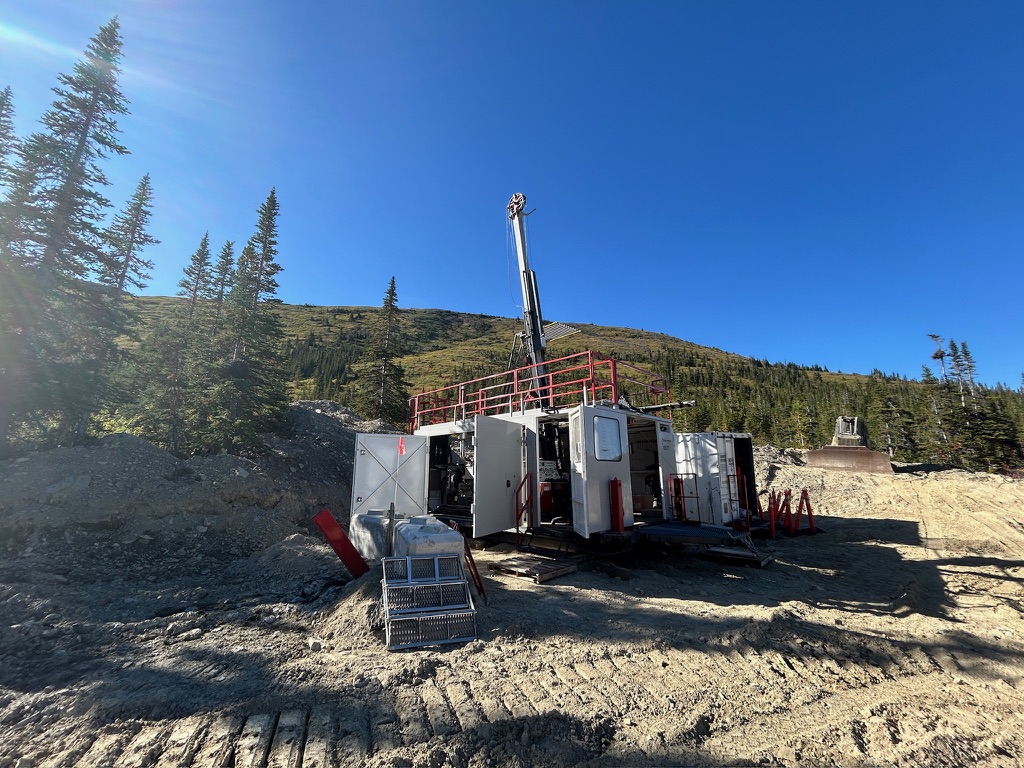

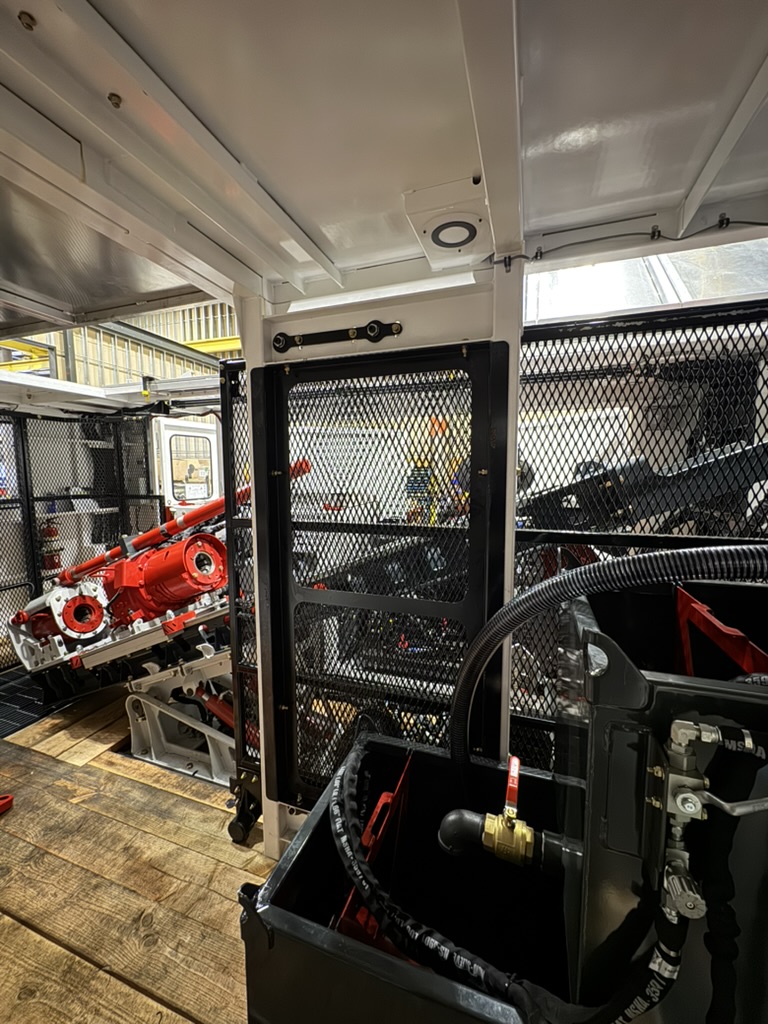

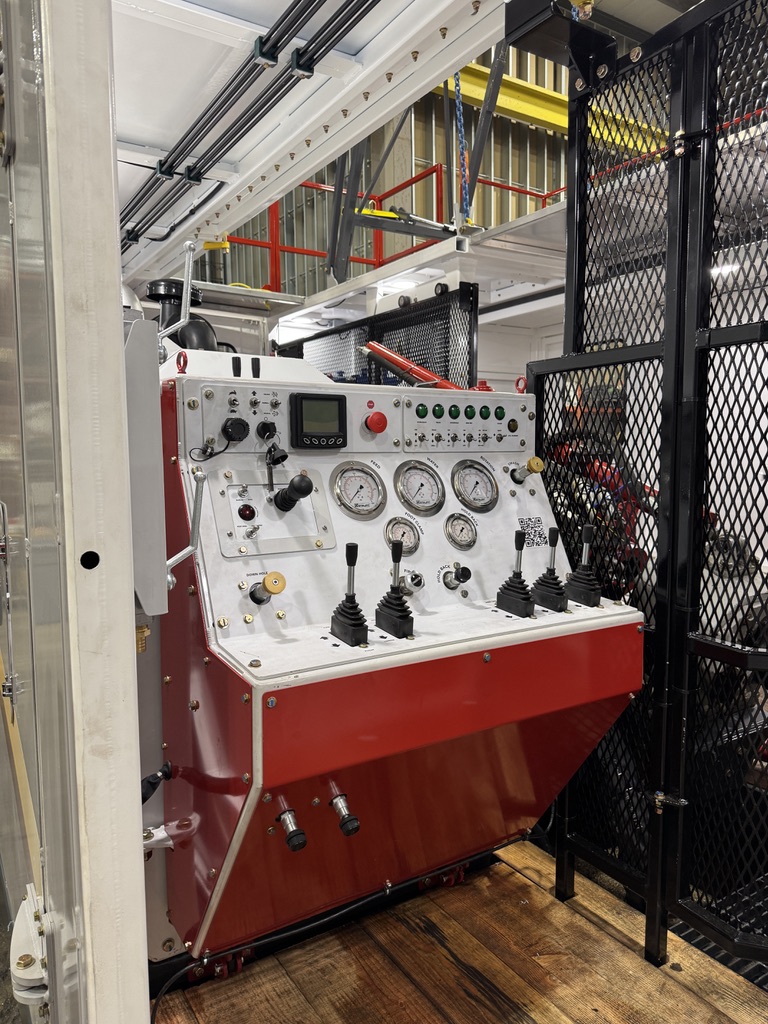

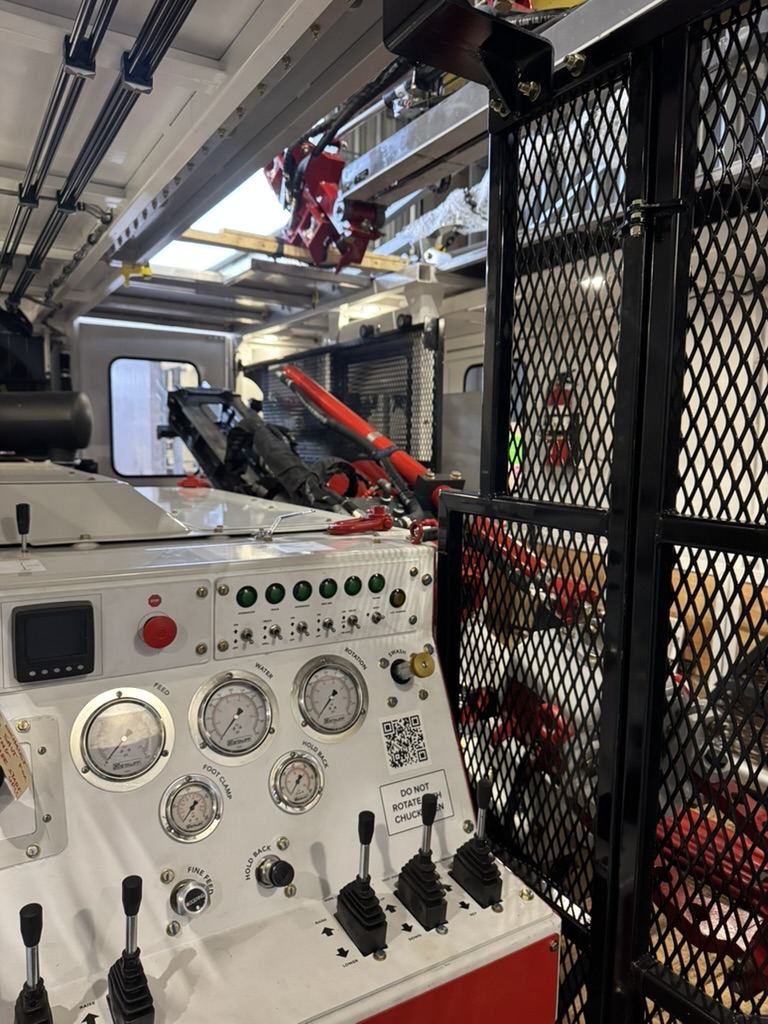

Integrated drill mounts & drip tray

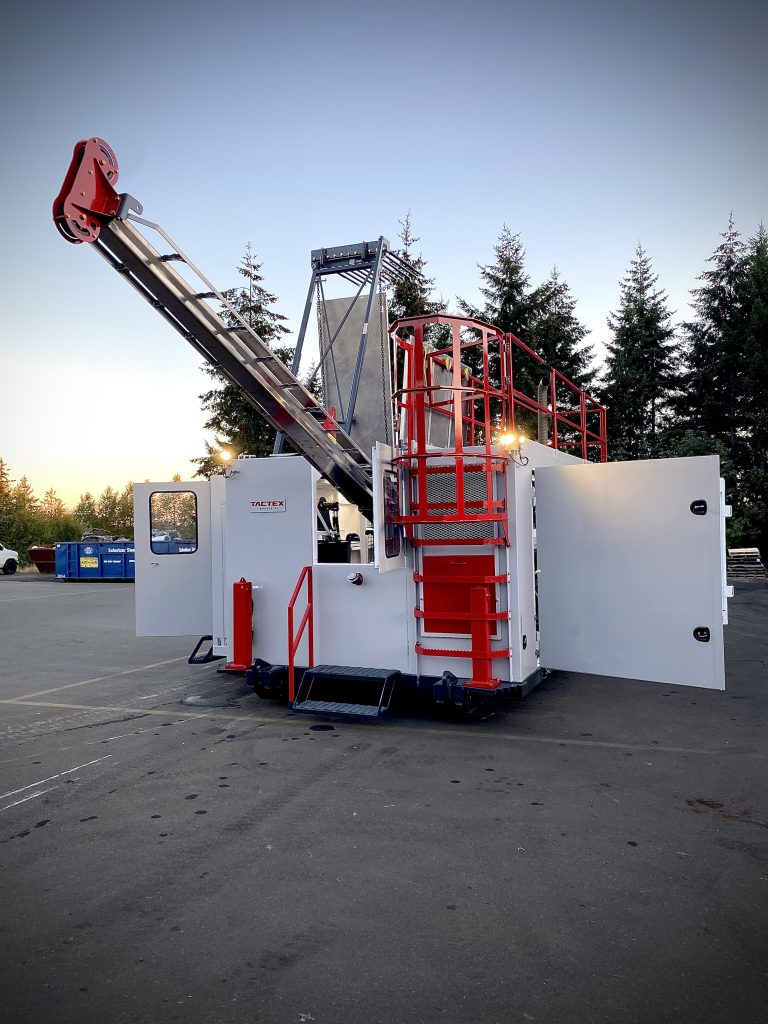

Our X-10 surface diamond drill sits low in the SX-10 drill shack. This means you’ll get better lines of sight, no skids to work around, and a drip tray to mitigate environmental mishaps or spills.

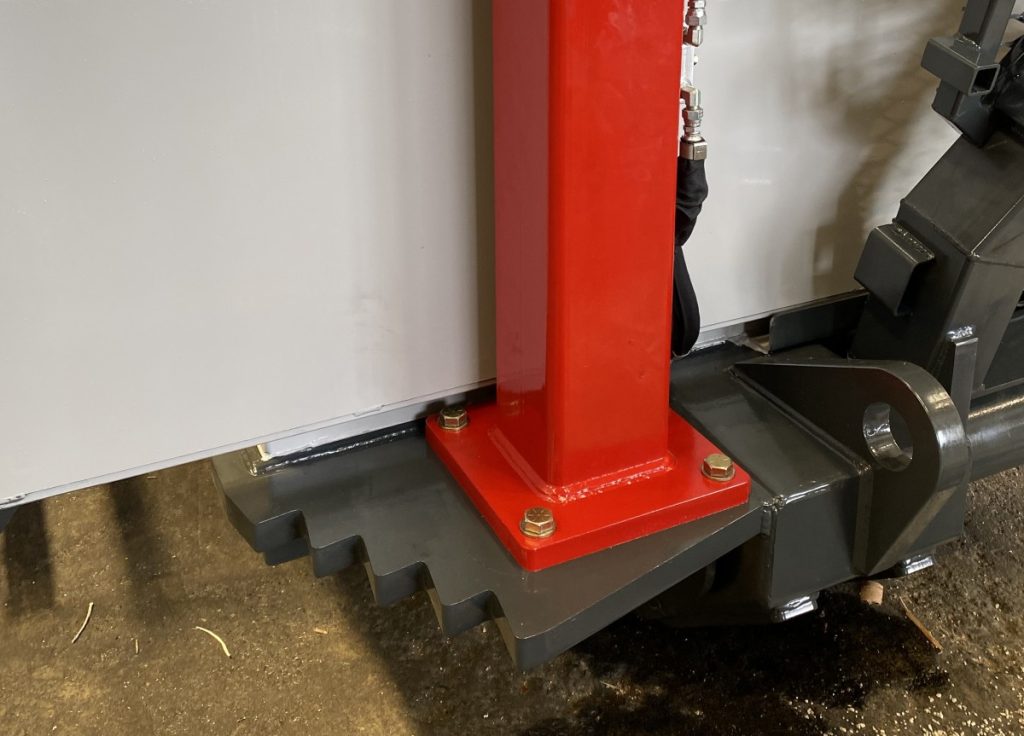

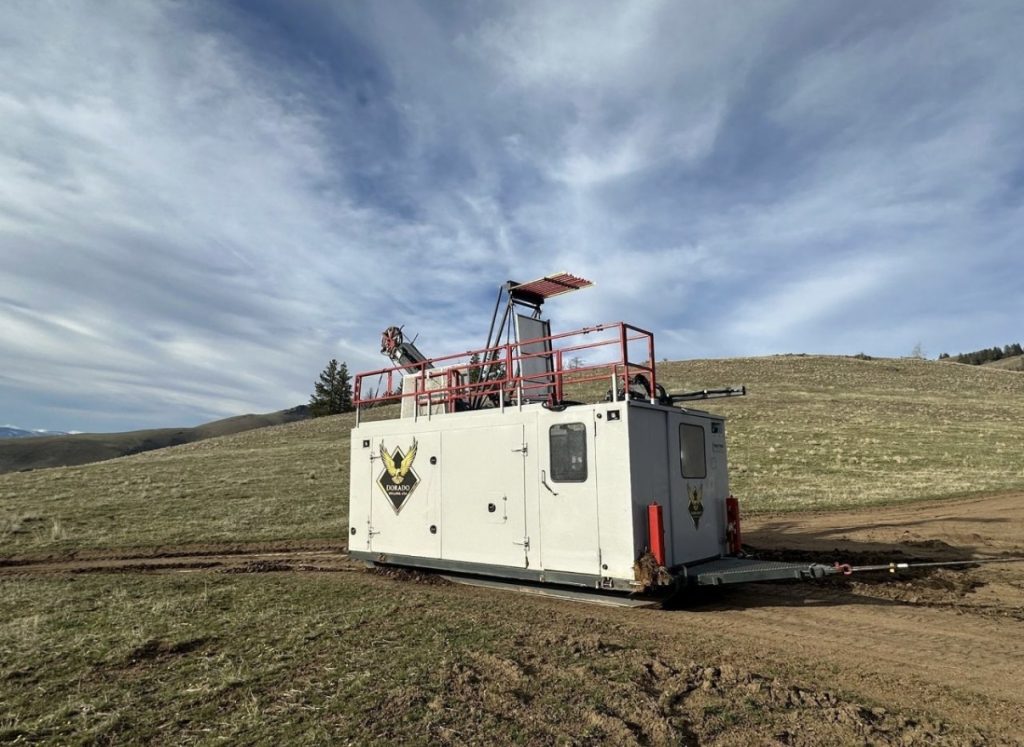

Leveling cylinders with teeth

Drill targets can be in tight spaces. With the SX-10 skid shack, the leveling rams make leveling a breeze. Plus, if minor azimuth adjustments are required, the dozer teeth keep the blade where it belongs rather than on the side of your drill shack walls.

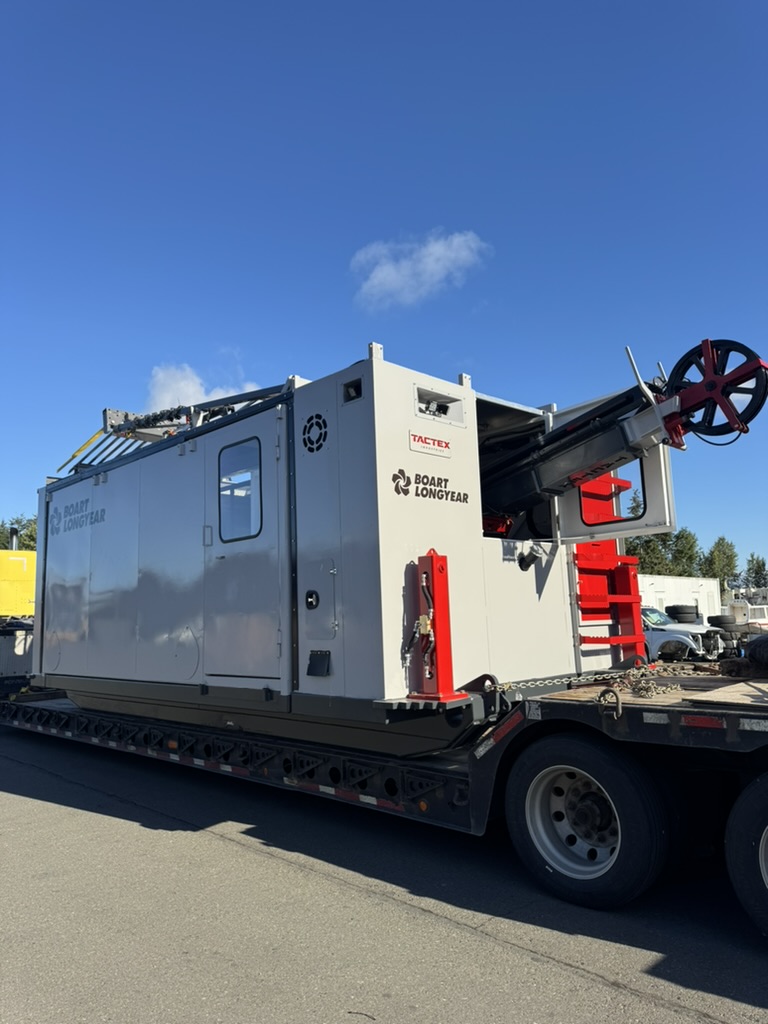

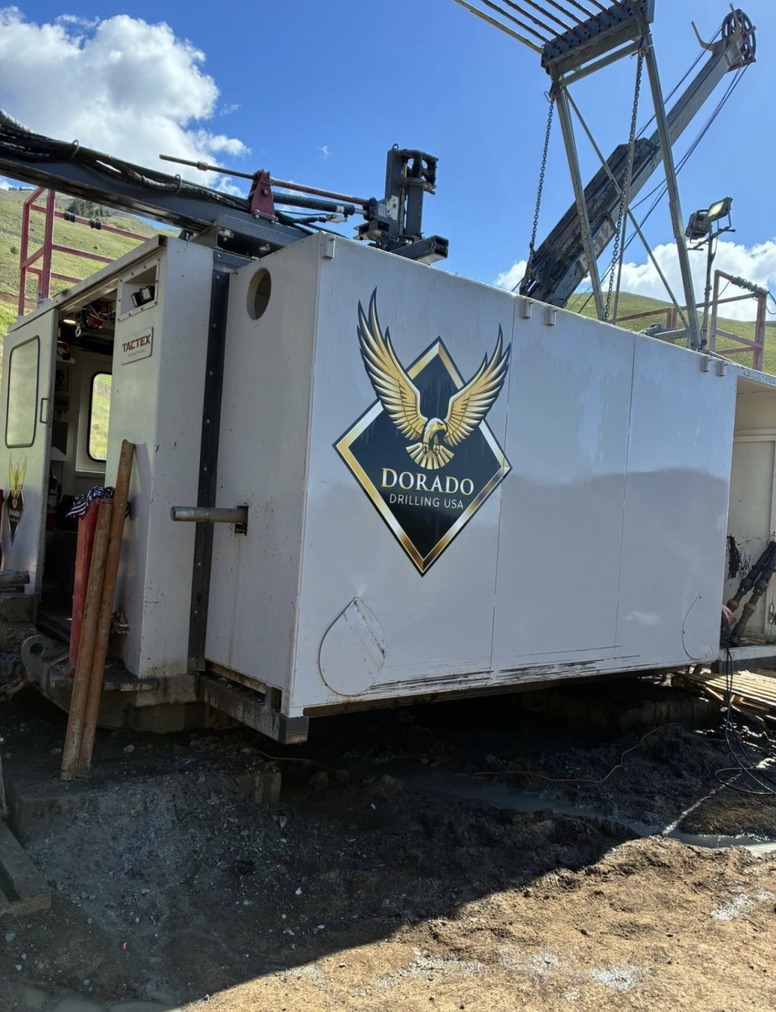

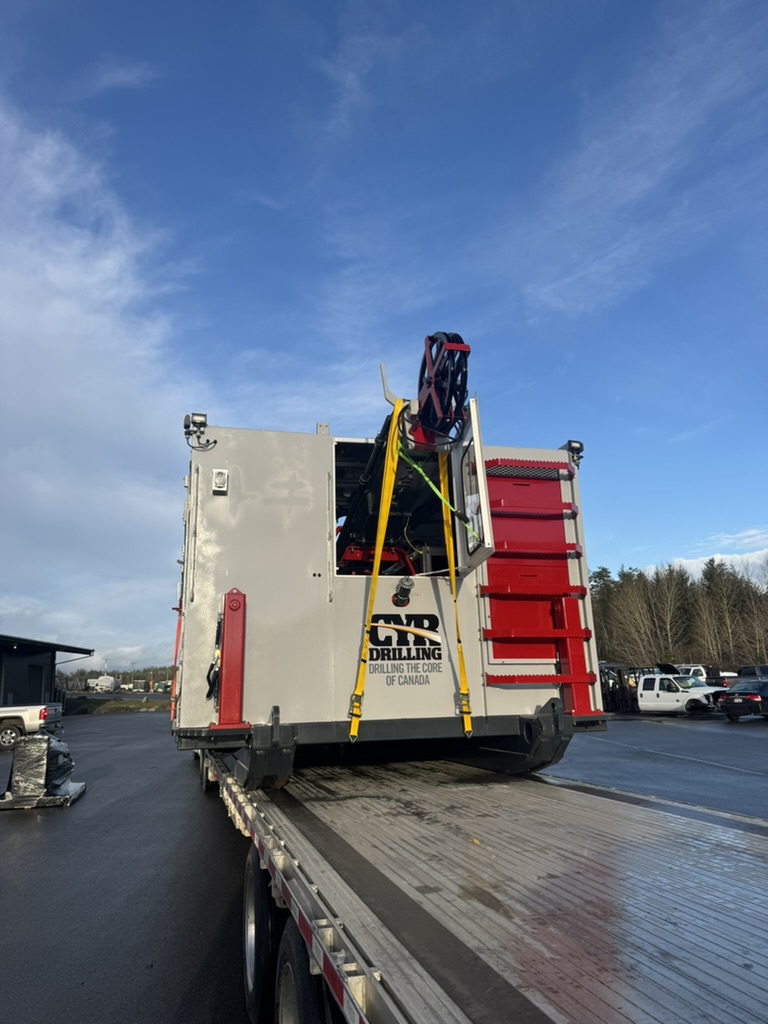

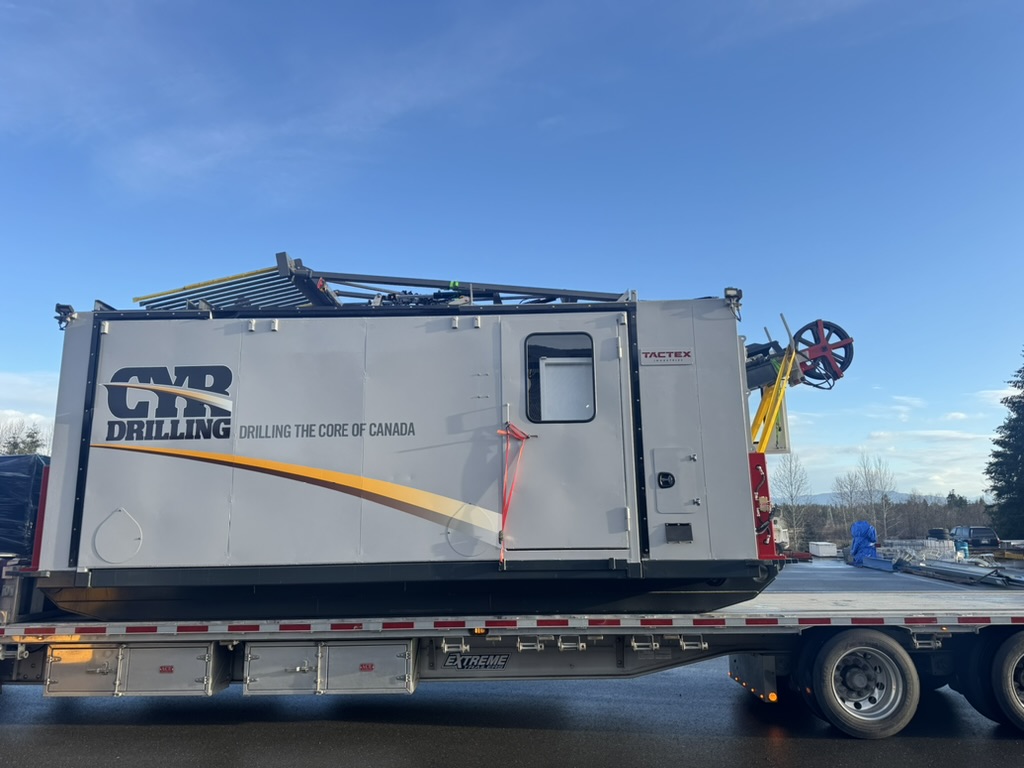

Reinforced skidbase

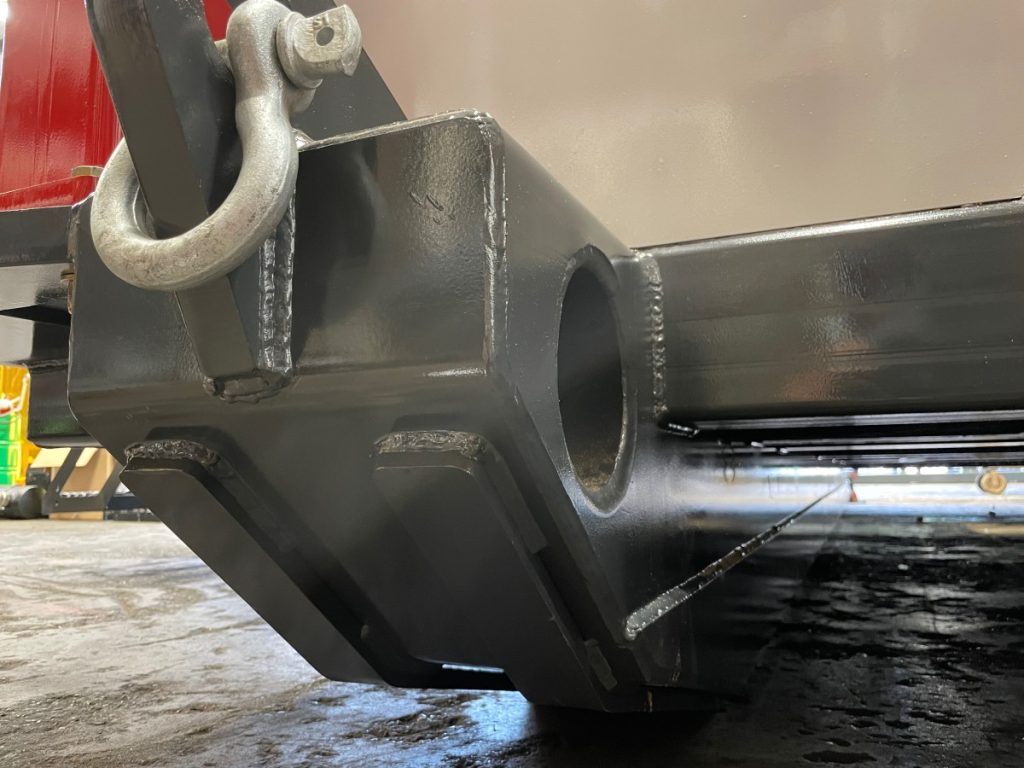

Drill shacks have to navigate uneven terrain and full rod racks skidding from site to site. To keep the shack tracking straight while you do your job, we added heavy wall tube skids with wear strips to the base.

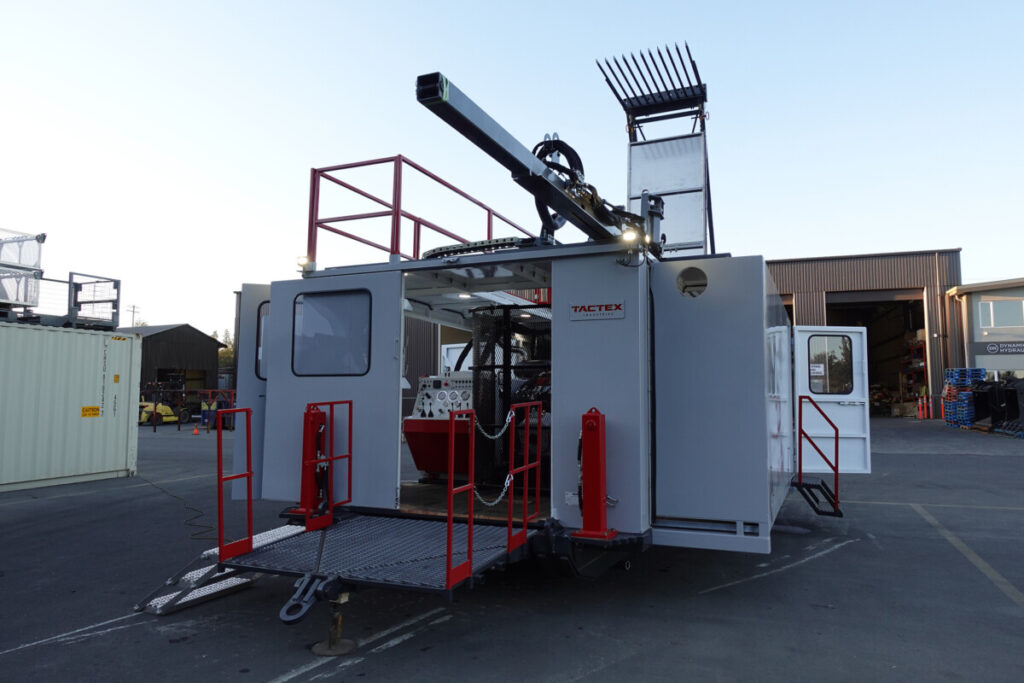

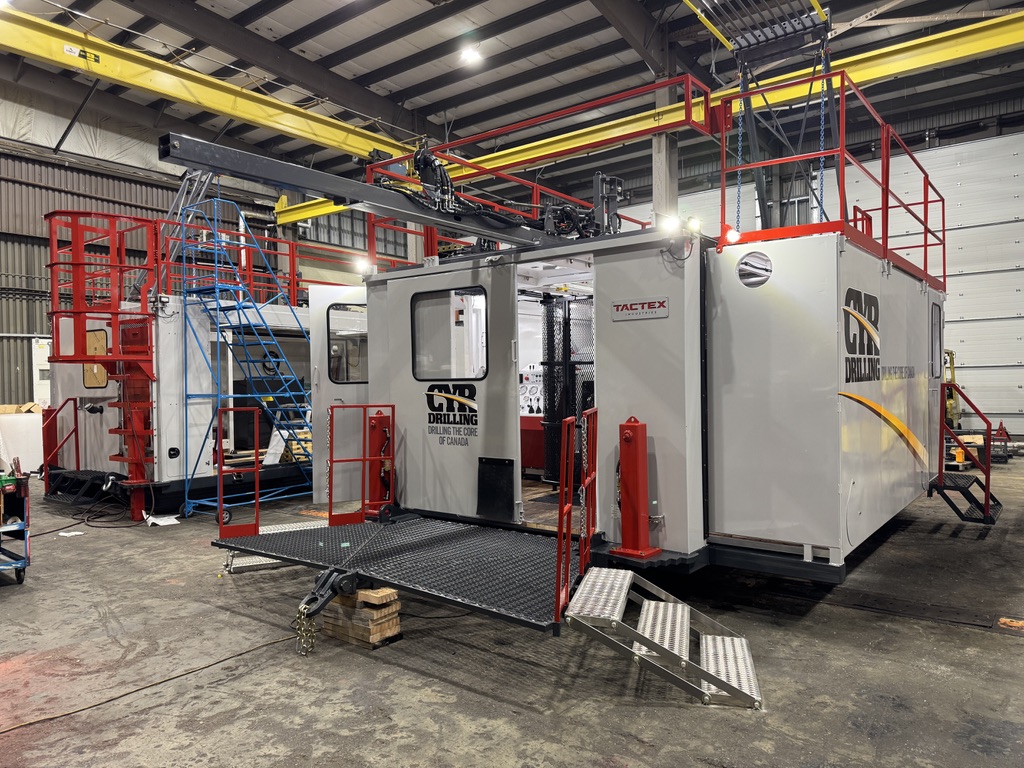

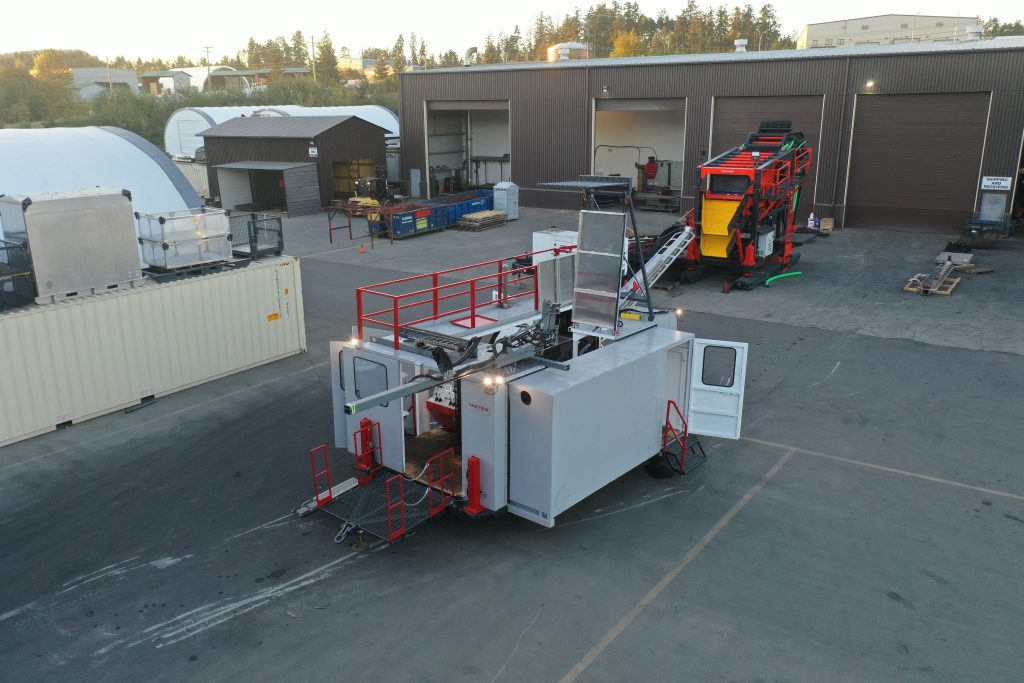

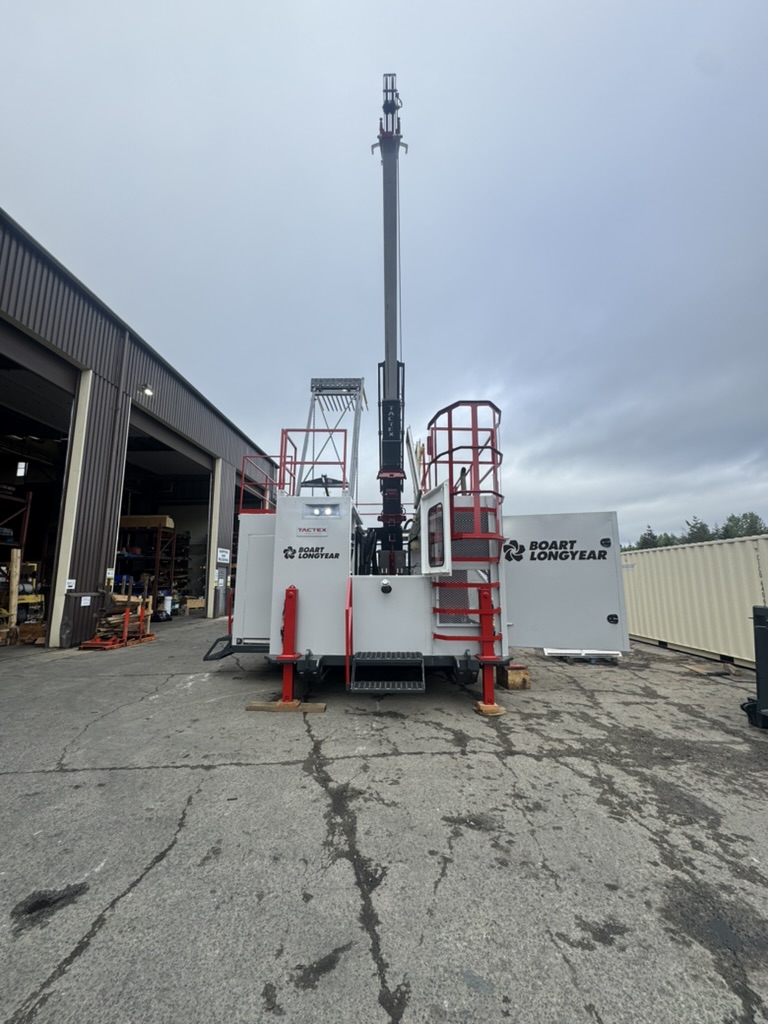

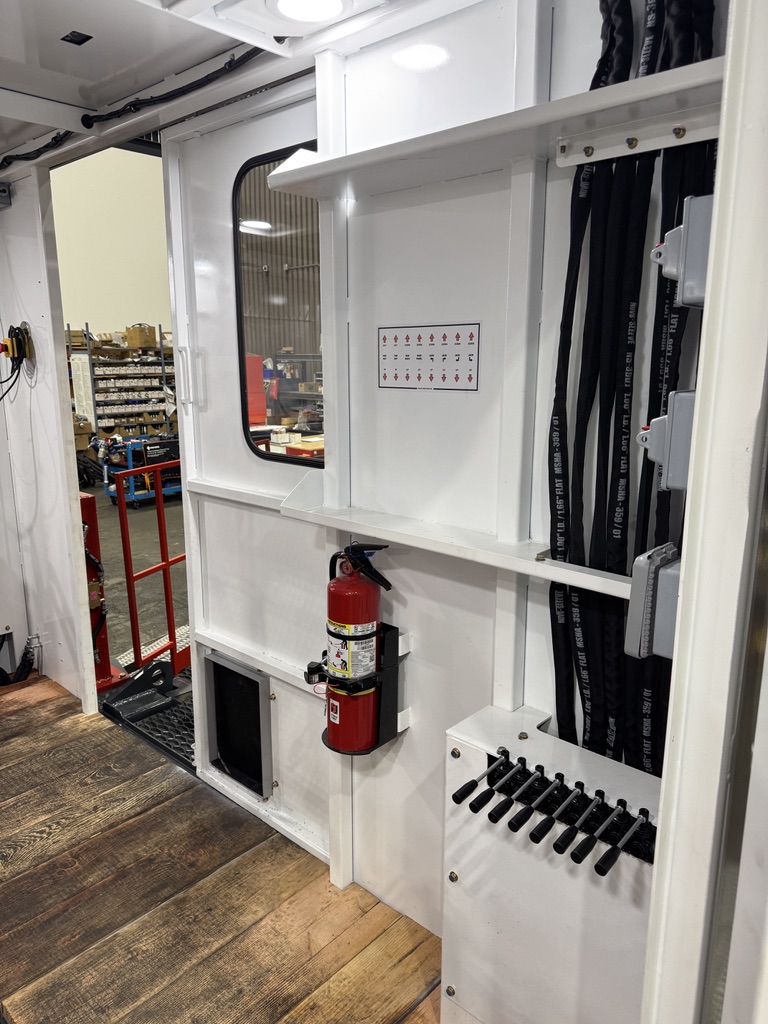

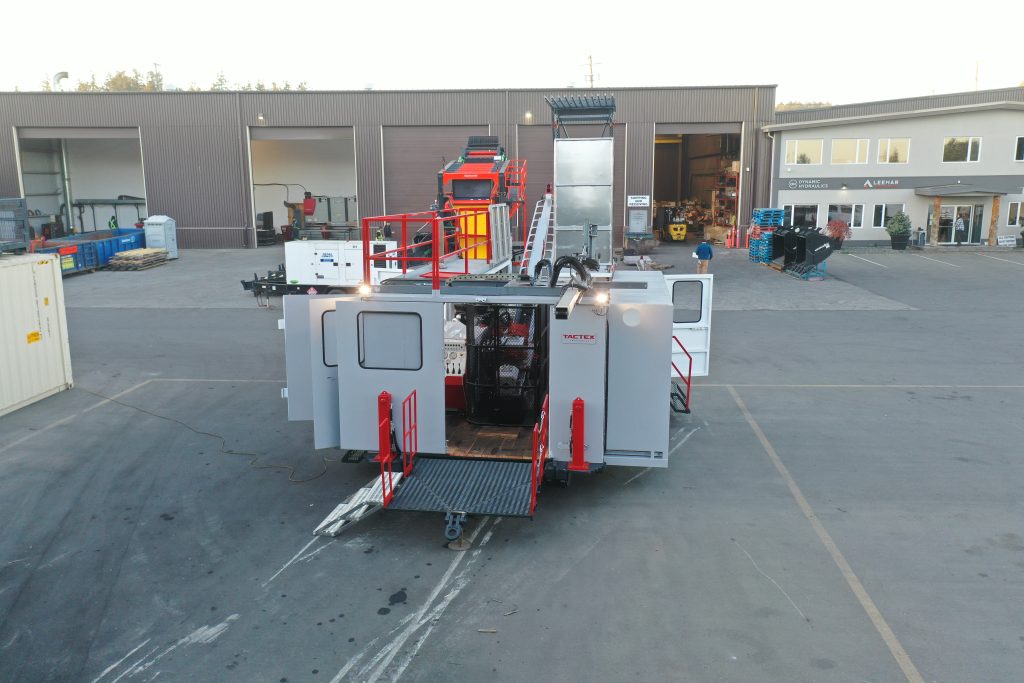

Hydraulic slide-out for additional workspace

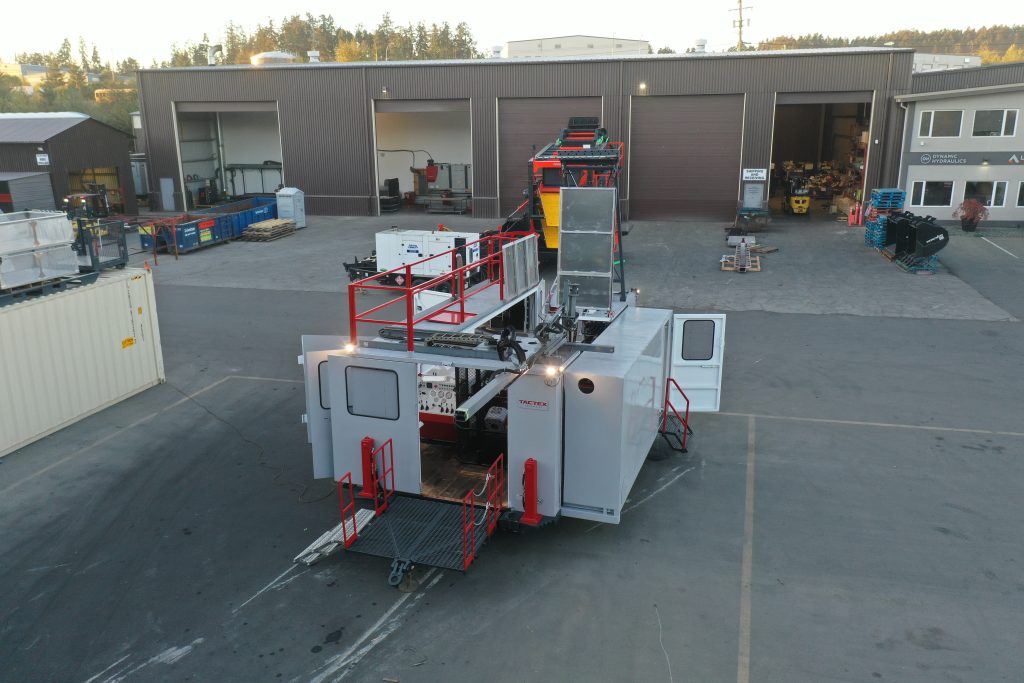

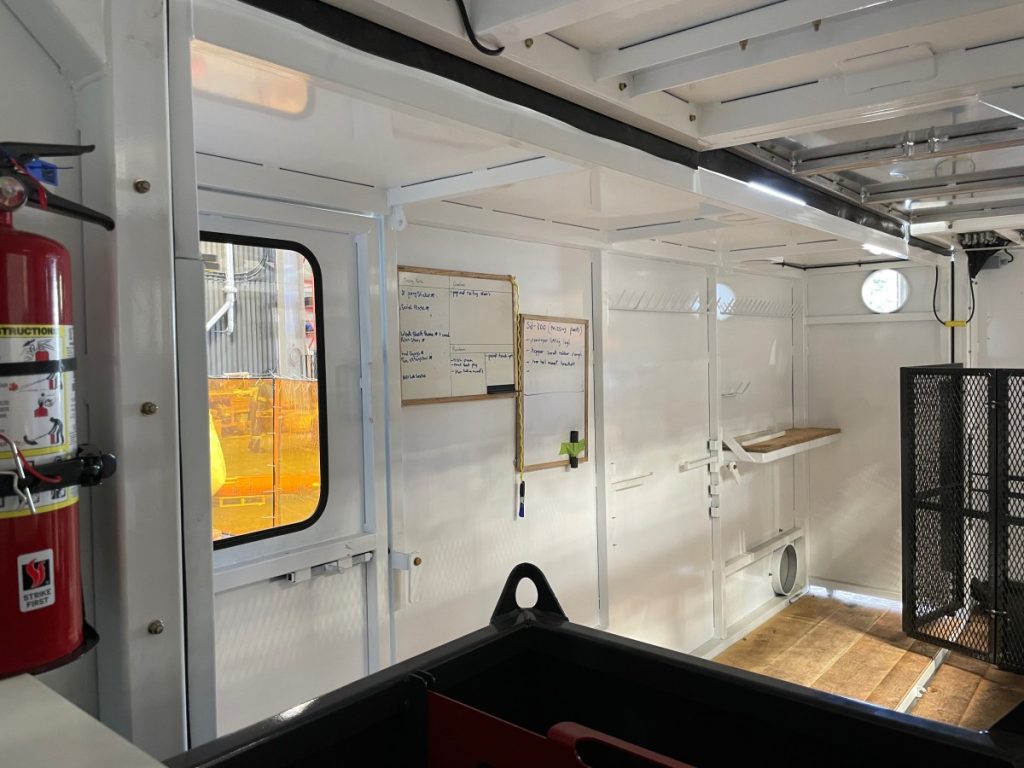

A hydraulic slide-out makes it possible to keep a slim shack width while still having room for your helper. This feature offers a core box table, tool racks, and a reinforced ring to help empty the core tube for extra safety and efficiency.

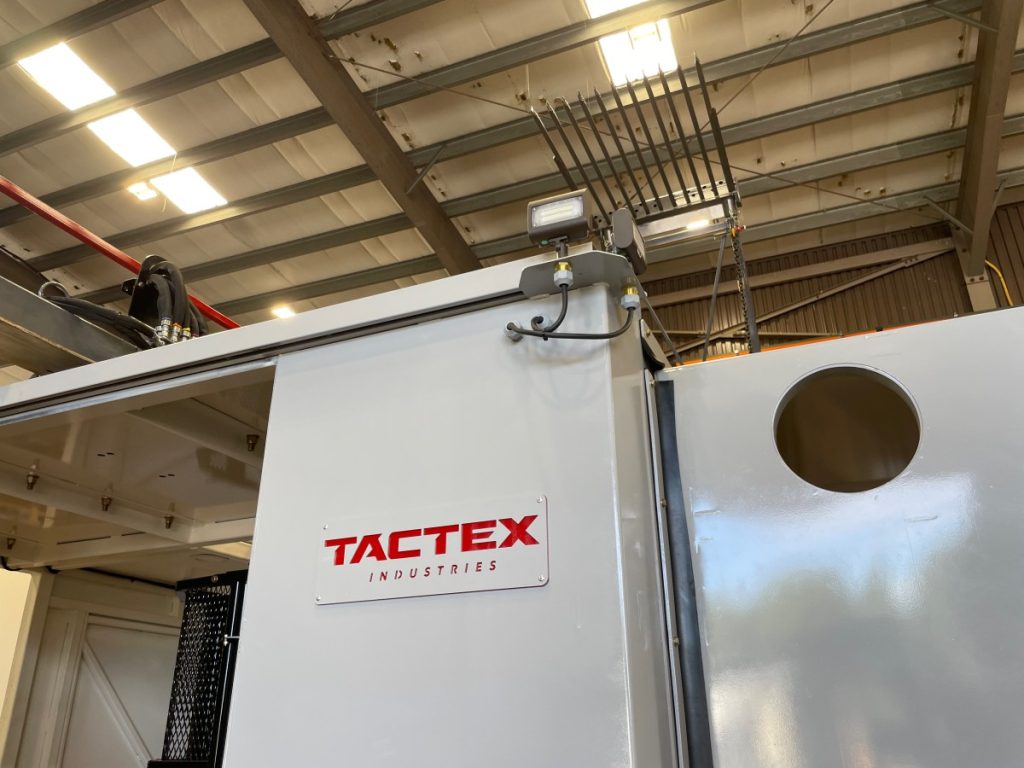

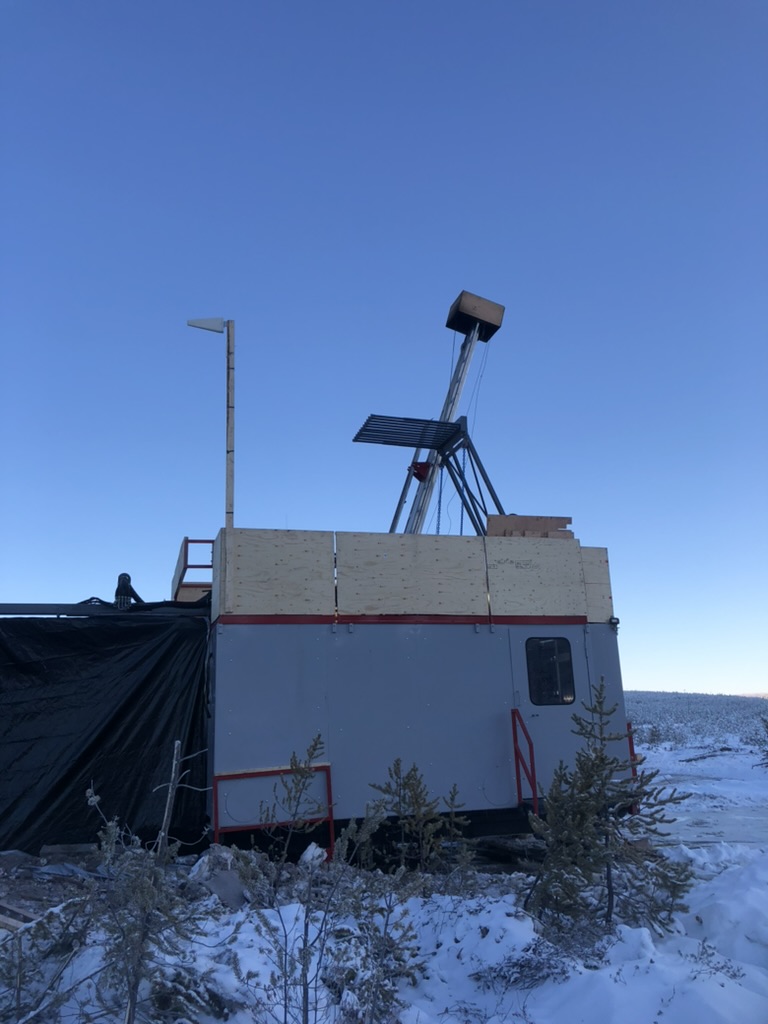

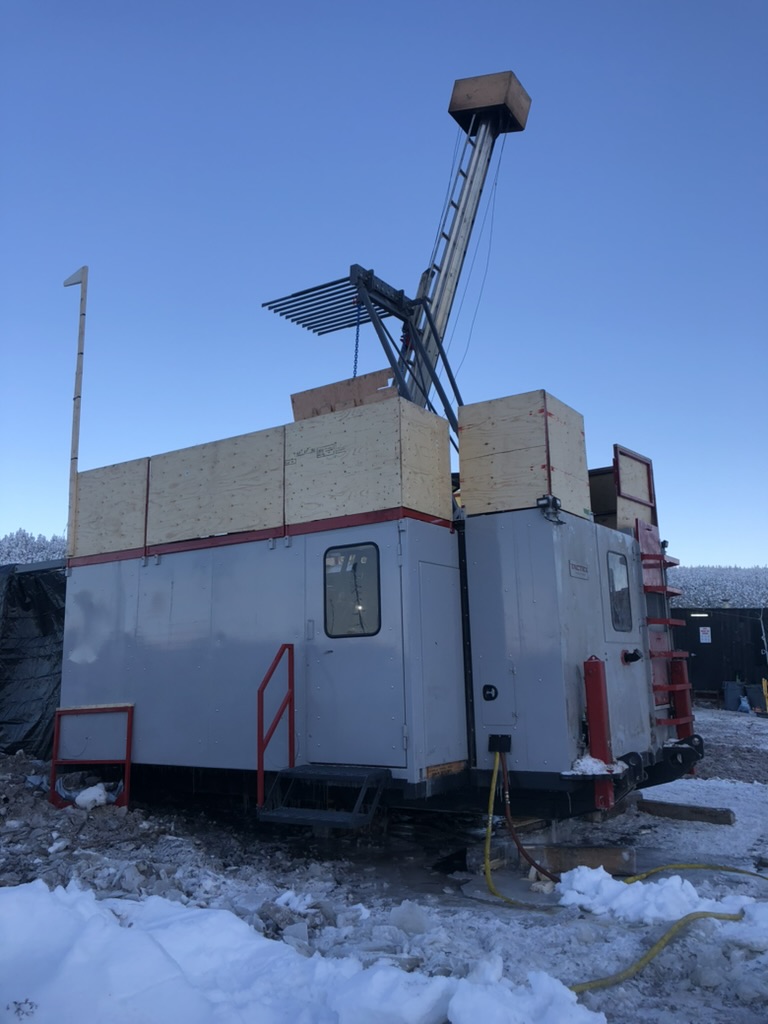

Interior/exterior full led light package

A bright interior and exterior make drilling in the shack safe during a night shift – and keeps your crew happy.

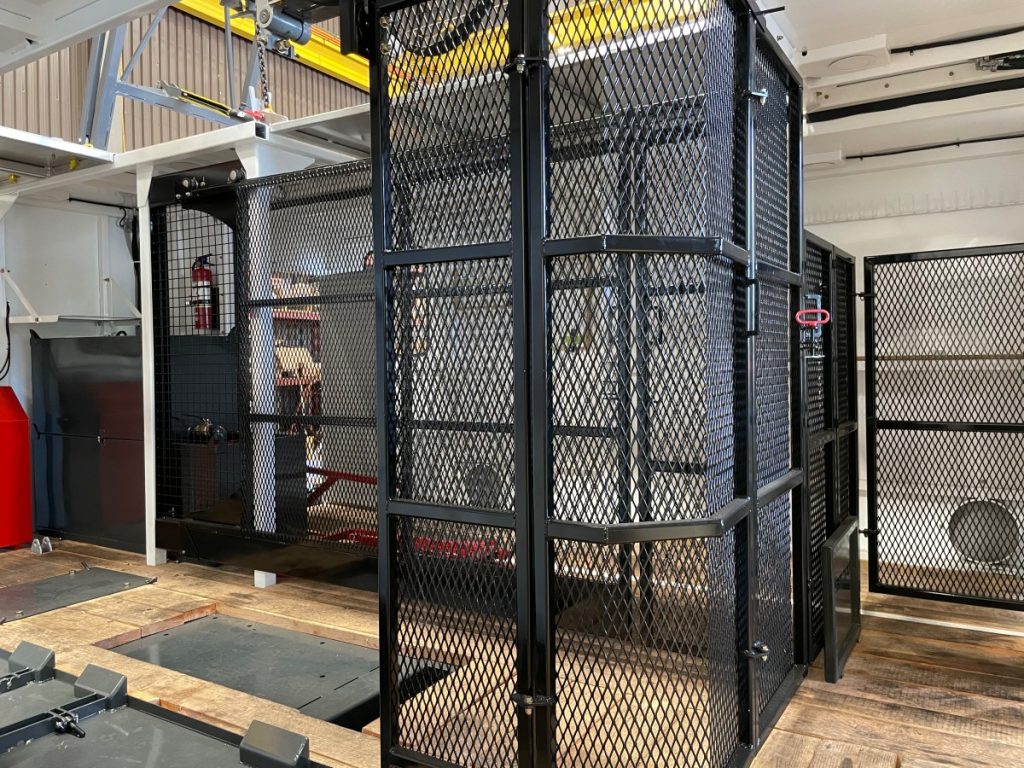

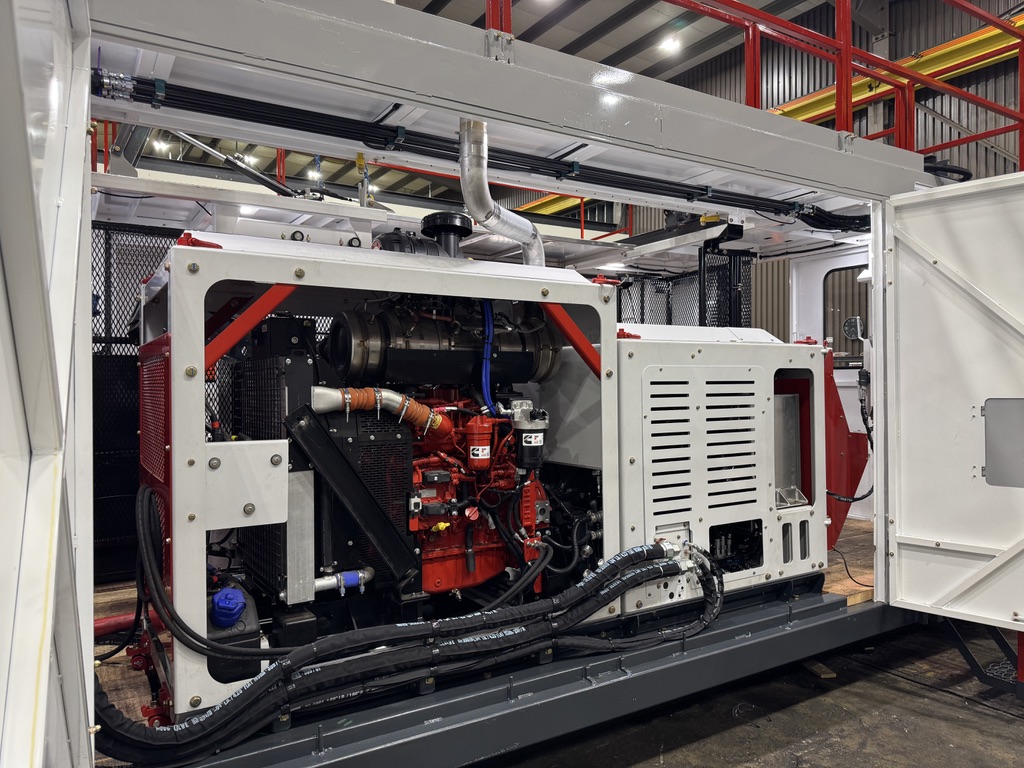

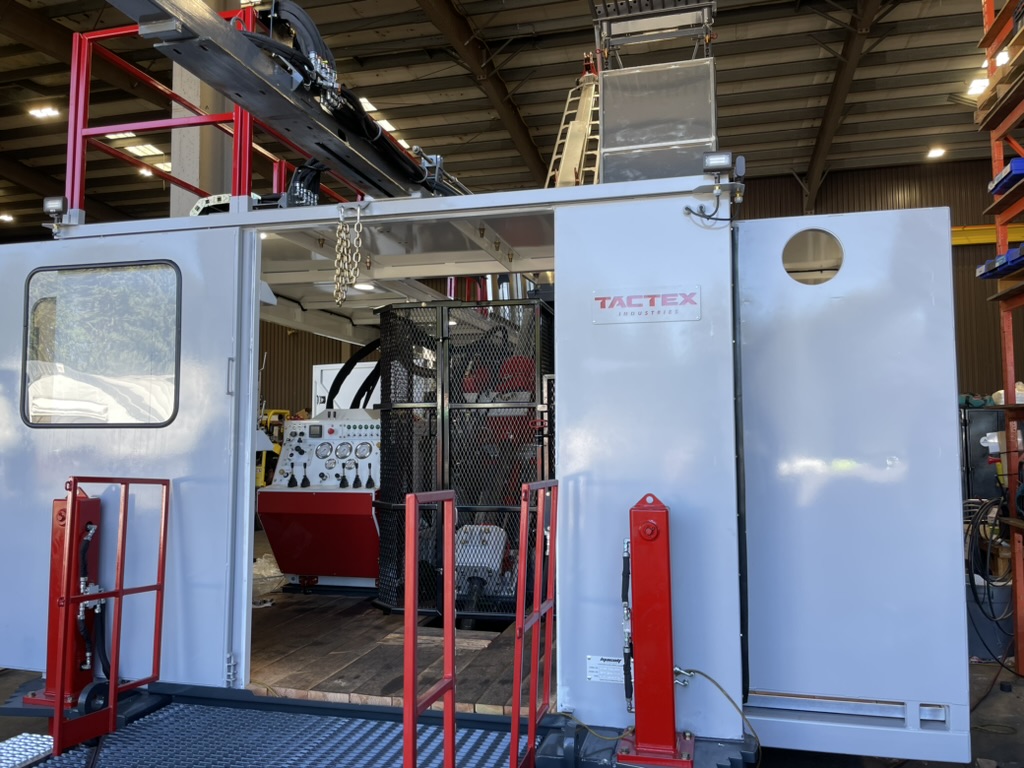

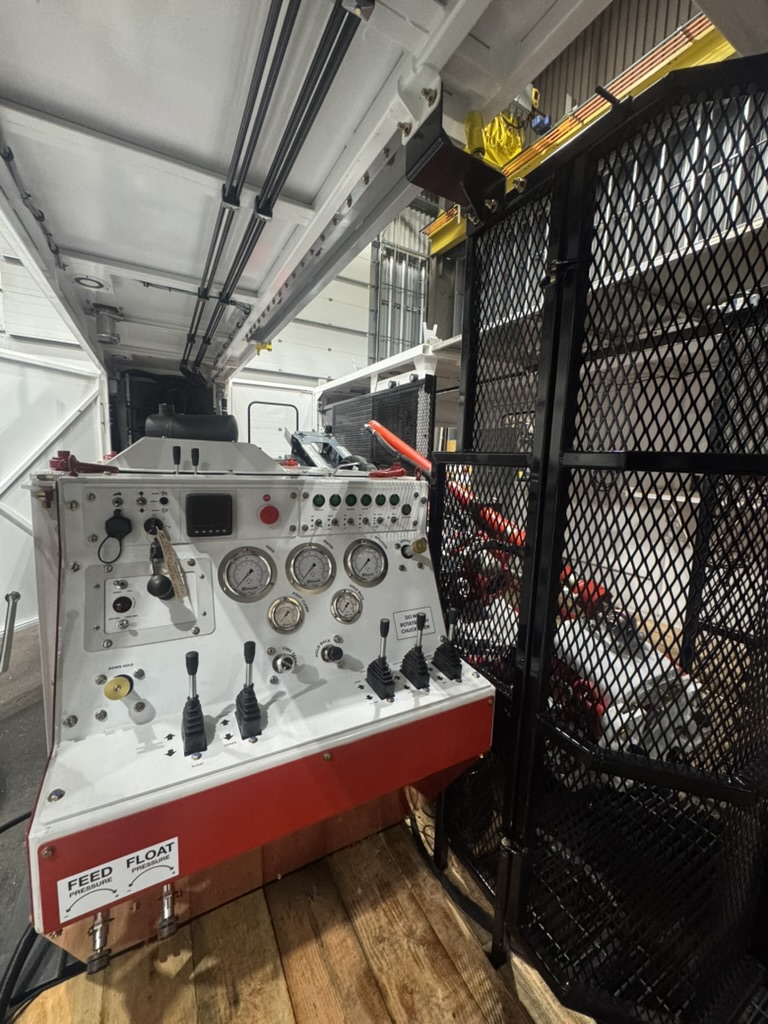

Integrated guard system

Our custom, in-house shack design gives you an integrated drill guard system to keep your crew safe. Plus, it offers interlock switches and a roll-away design for extra accessibility.

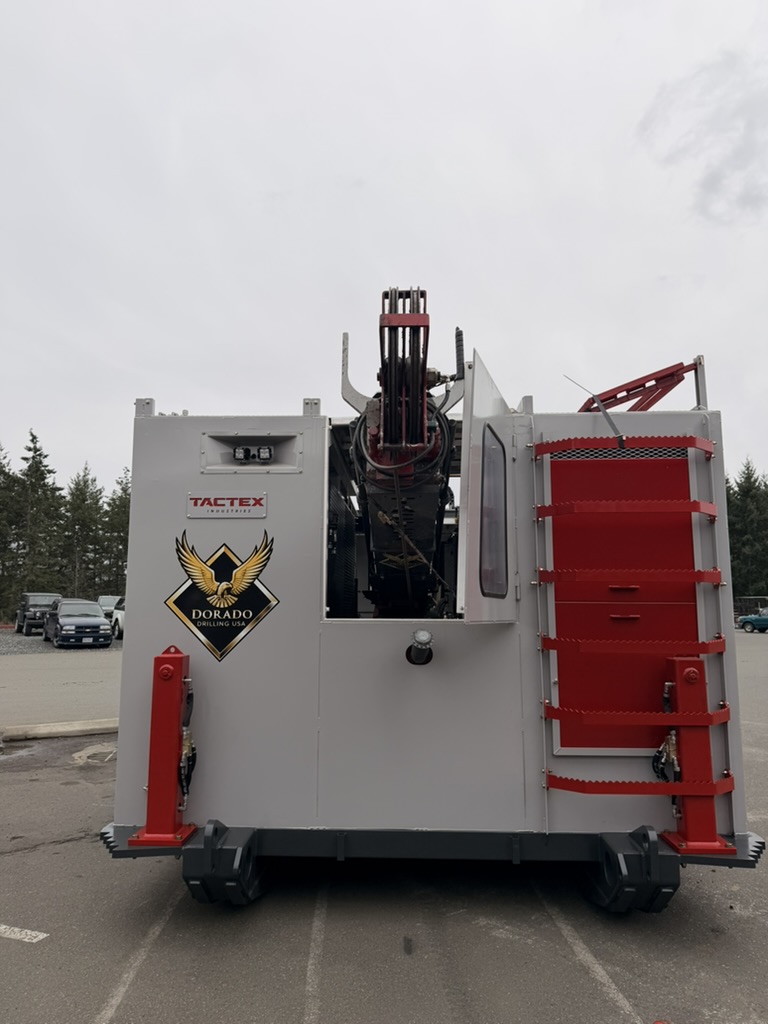

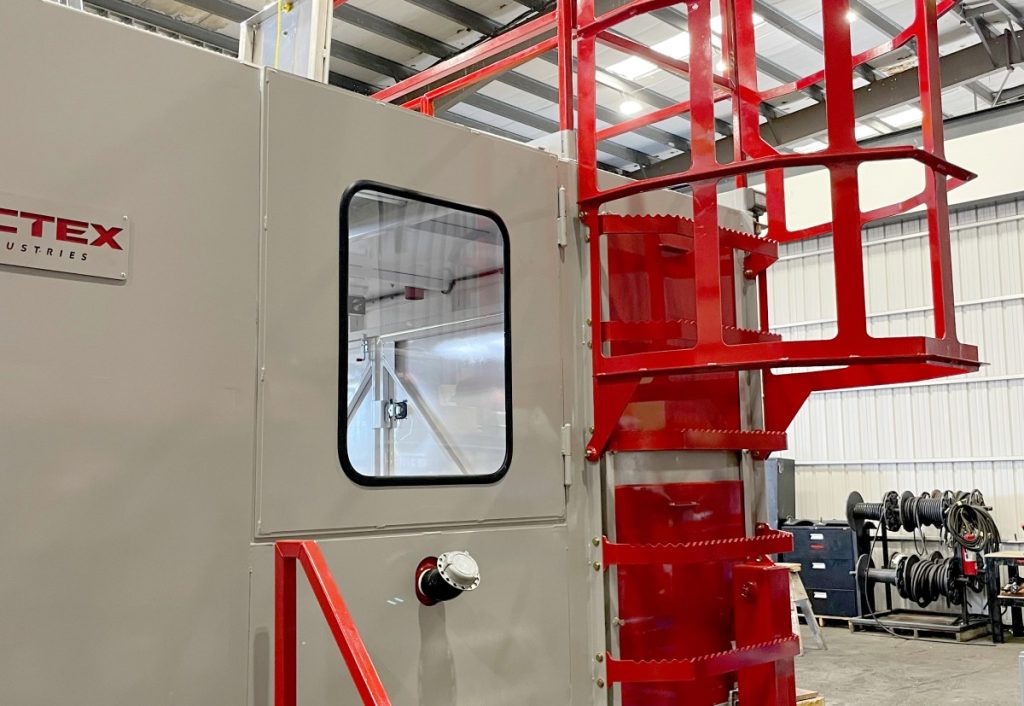

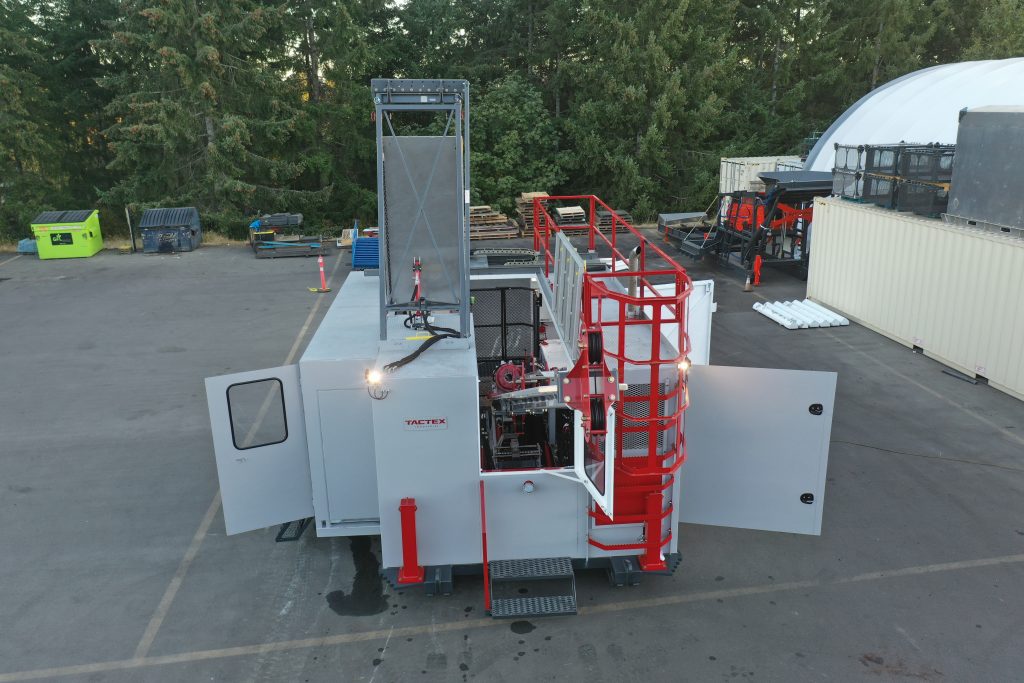

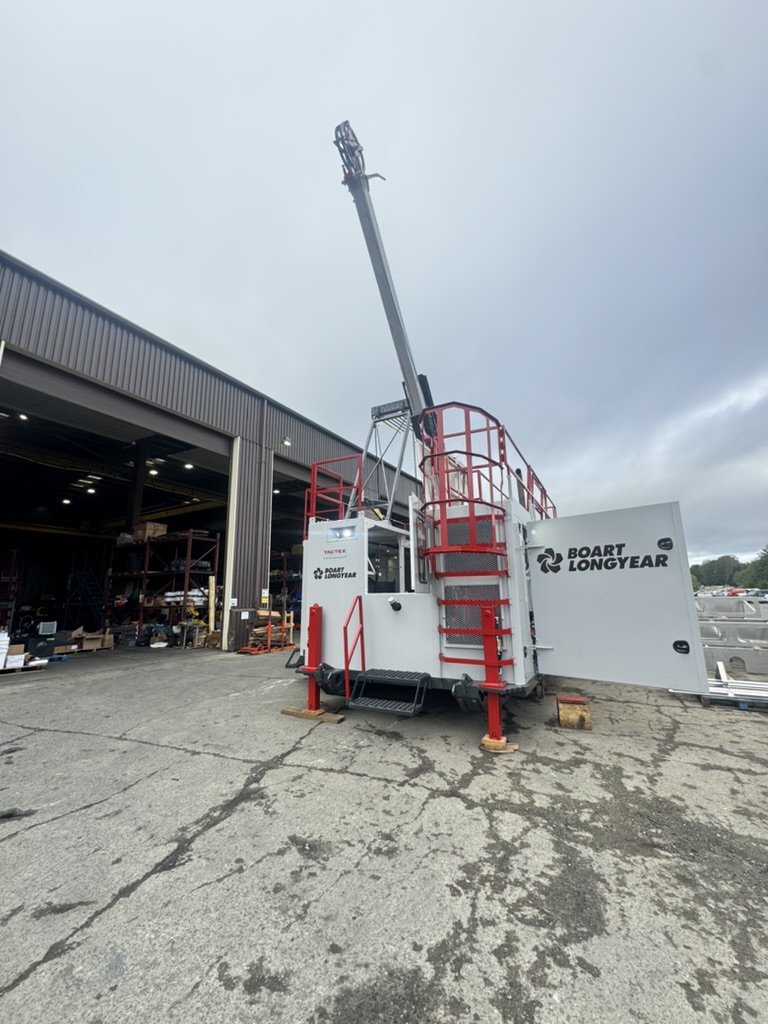

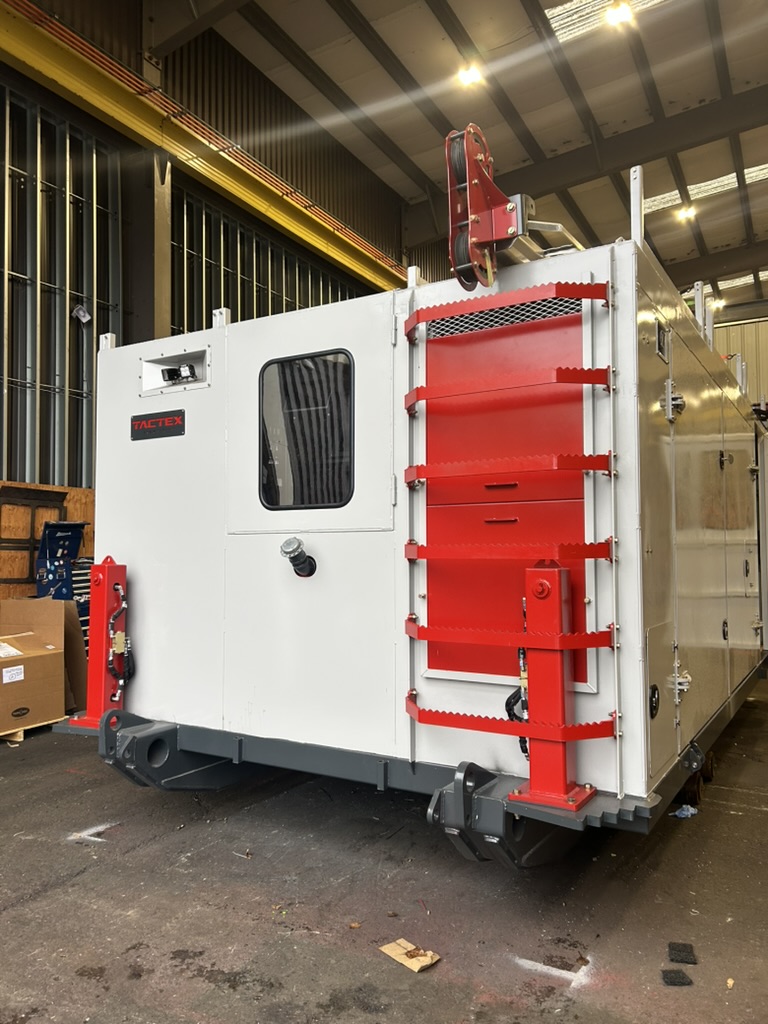

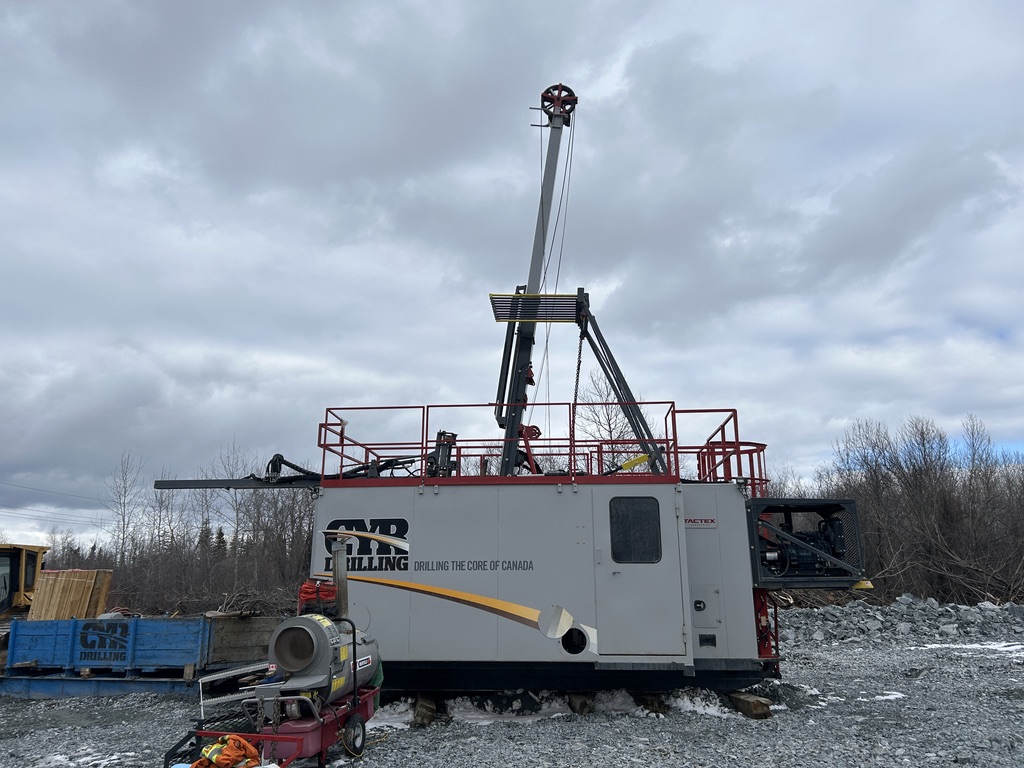

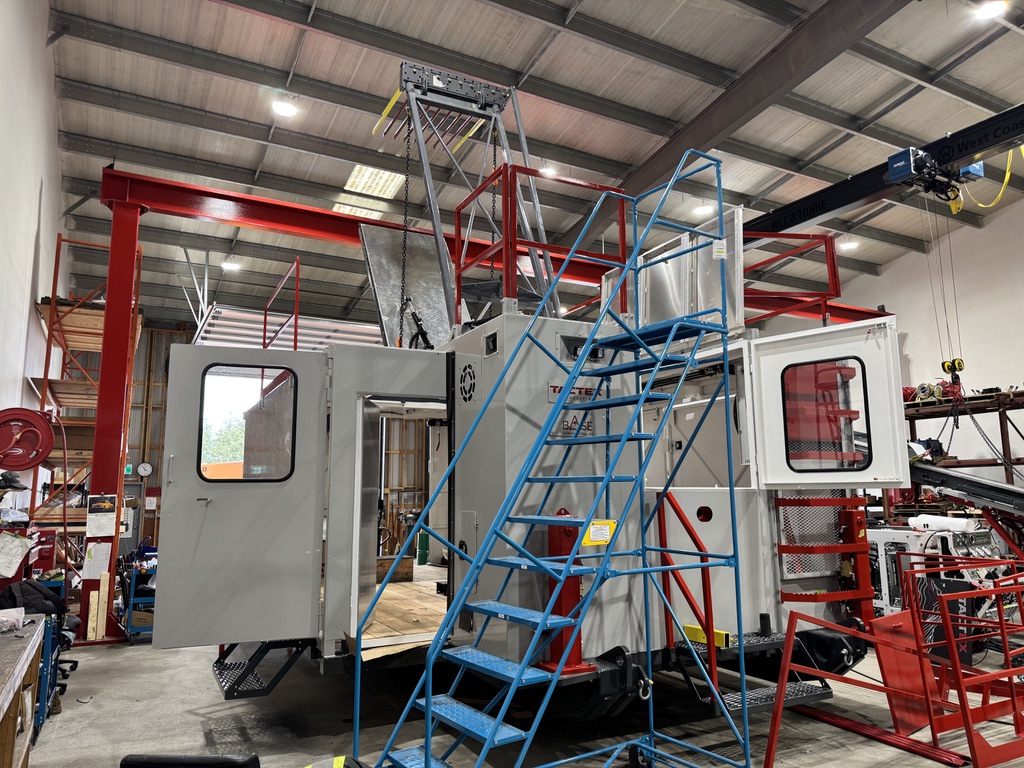

Ladder and guard rails package

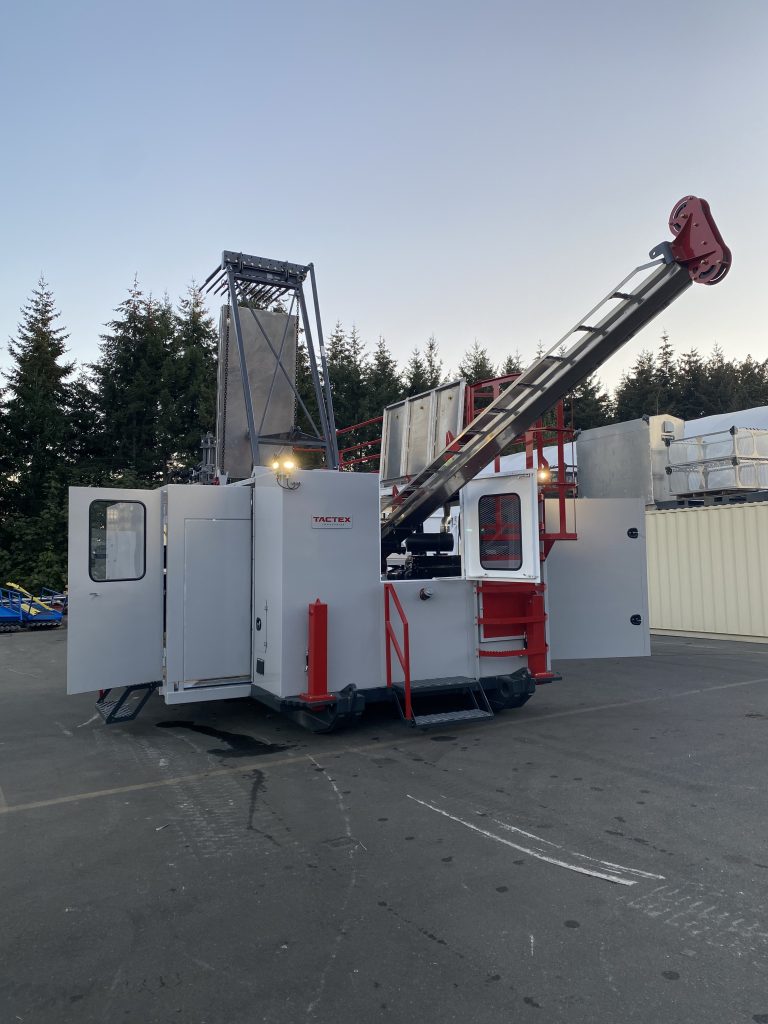

Access your drill’s roof safely with a tilting cage around the ladder and removable railings around the drill shack roof.

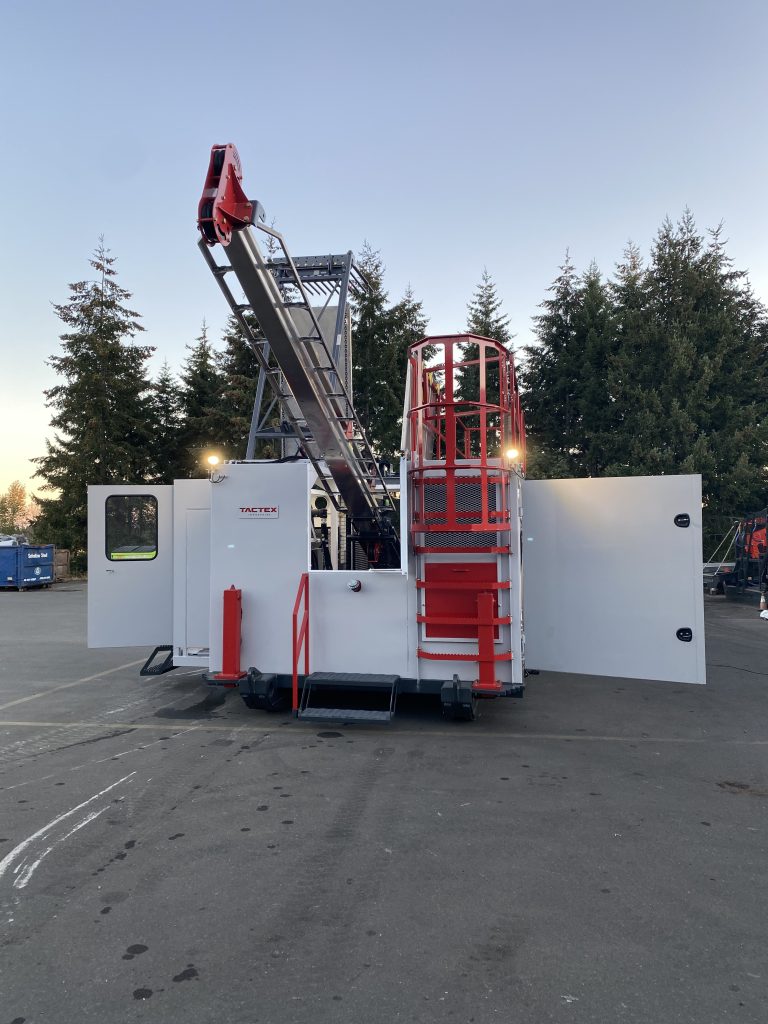

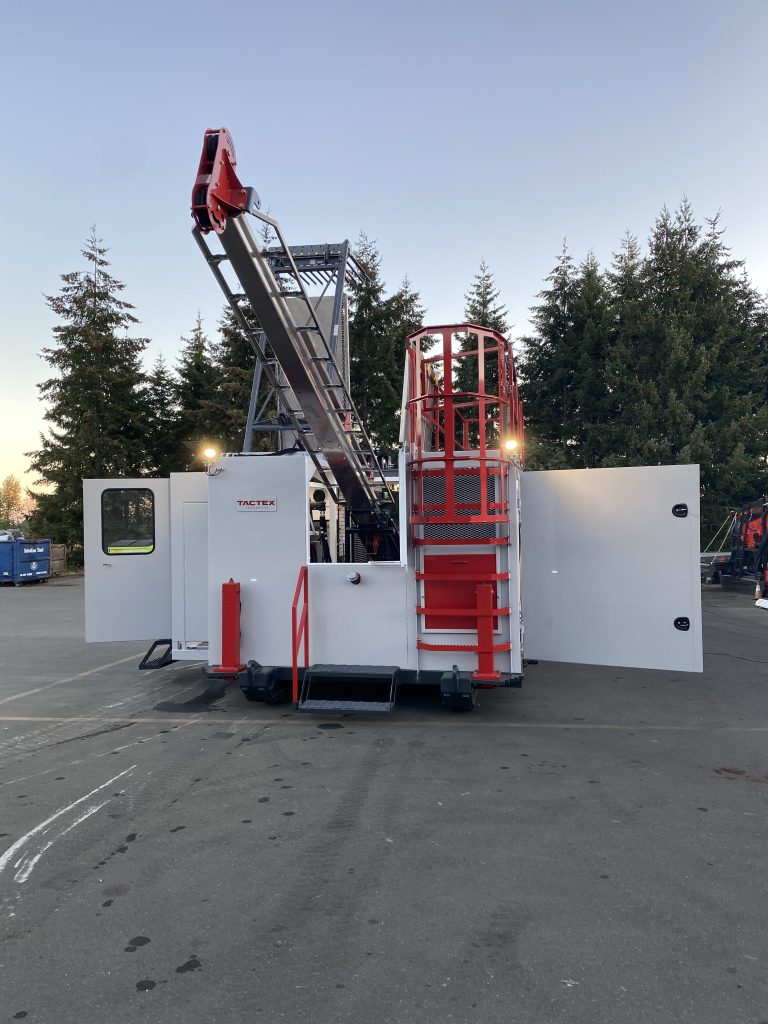

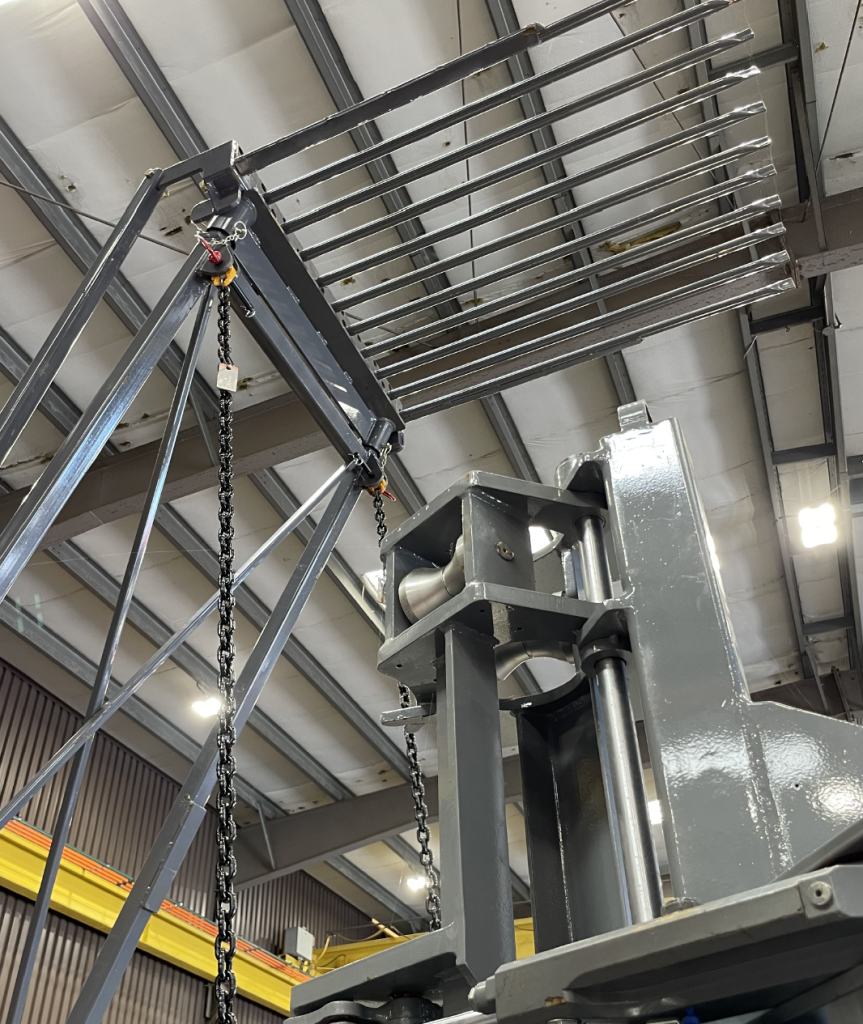

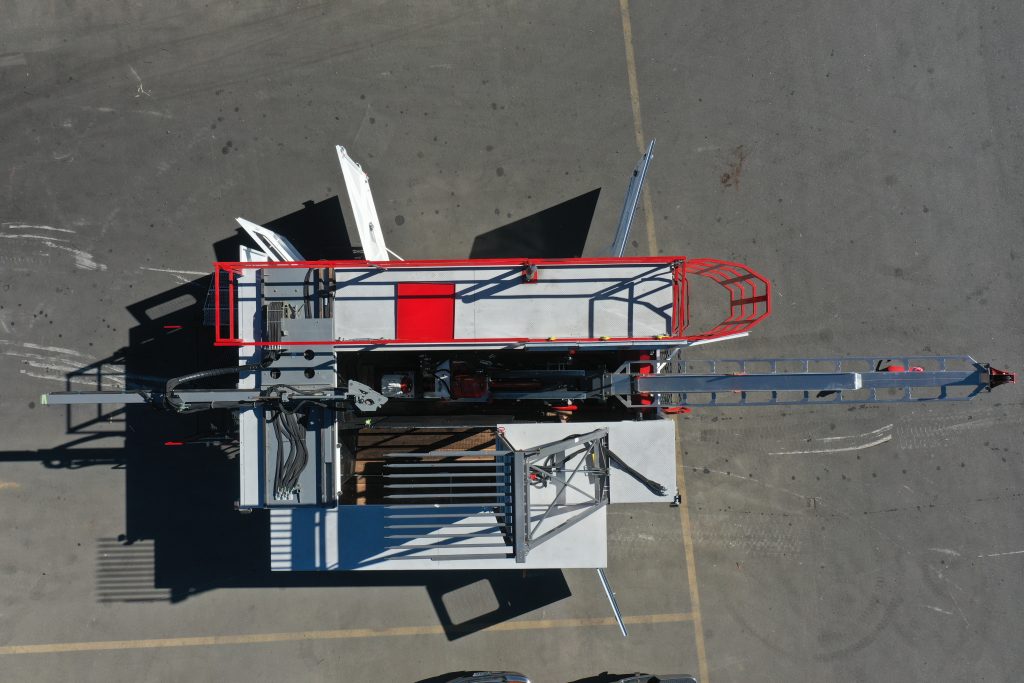

Rod handling and stacking system

Rod pulls – and keeping your helper safe – is part of drilling. Get faster, safer, and less strenuous changes with the AVD rod handling system and hydraulic rack.

Specifications

GUARDING

Integrated rolling with interlock

FUEL CAPACITY

250L double-walled fuel tank

ROD CAPACITY

1,700m of NQ in 9m lengths

WEIGHT

33,000 lbs

DIMENSIONS

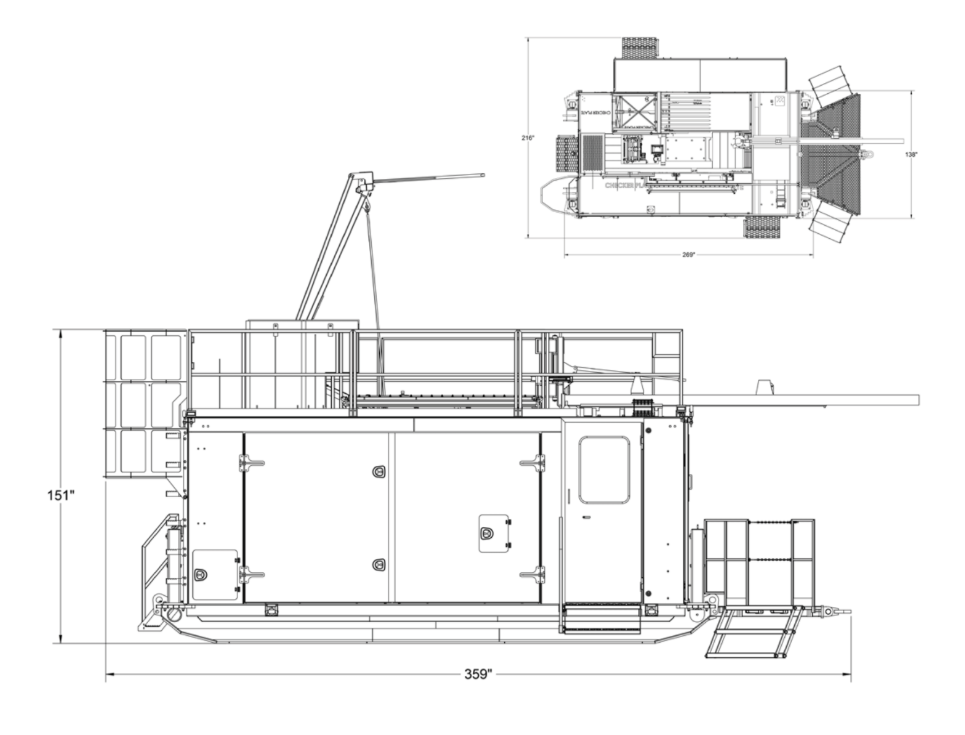

Shipping: 310" long x 137” wide x 138" tall
Operational: 359" long x 221" wide x 151" tall

MUD SYSTEM

650L bottom tank with slide-in mixer
450L top tank with slide-in mixer

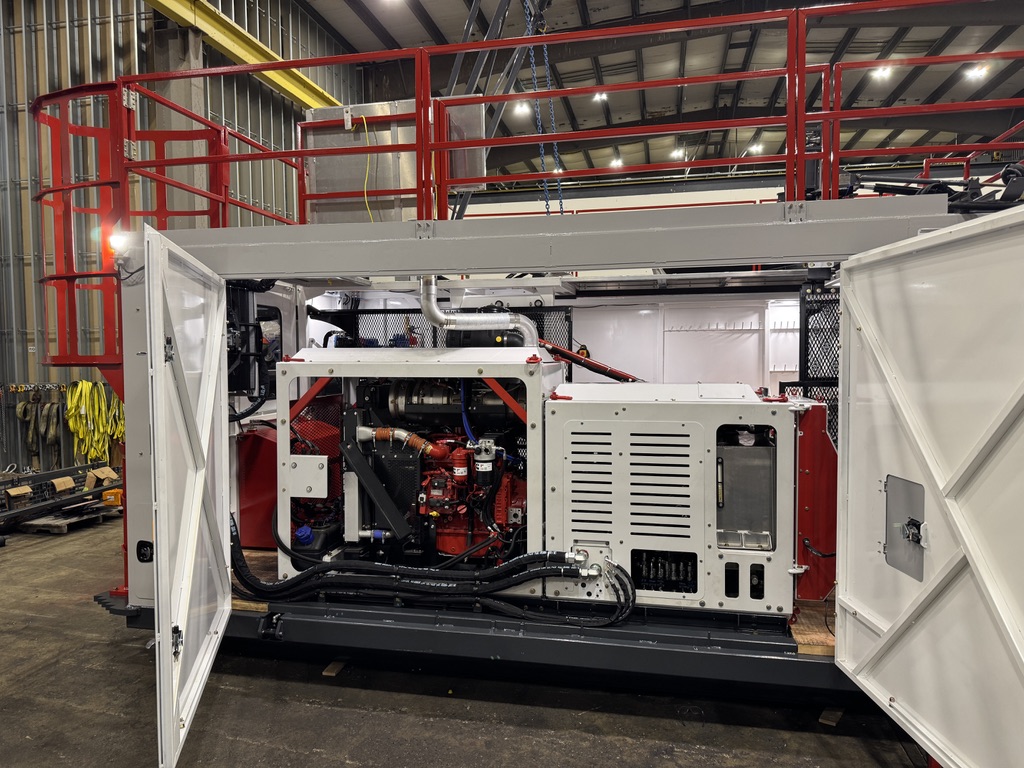

435 pump mount is integrated directly into the shack

Options

  • Wire and mount 6) LED lights with switch and GFI outlet
  • 435 Supply pump, hydraulic motor, coupling hydraulic lines plumbed in
  • Wire and mount 8) LED flood lights on exterior corners for shack
  • 2nd mud tank with mixers dual flow control (1st mud tanks and mixer on drill quote)
  • Removable railings outside of roof with kick plate
  • Safe sleeve hydraulic hose cover for rod handler and drill shack
  • Ladder cage with spring hinge door for ladder access
  • Levelling cylinders with counter balance
  • Leveling cylinder valve bank and hoses plumbed into shack
  • Hand rails for hitch extensions
  • Aluminum stair set for hitch
  • Integrated rolling guard system
  • Rooftop lifeline for lanyard
  • Hitch wings
  • 3 E-stop switches
  • Hydraulic tilt roof panel for rod stacking area
  • Three aluminum, hinging roof panels for drill opening
  • Wall insulation (laser cut holes on all panels and aluminum interior panels)
  • Ceiling Insulation (laser cut holes on all panels with aluminum interior panels)
