X-10 LONG STROKE
Select the configuration that best fits your drilling requirements.

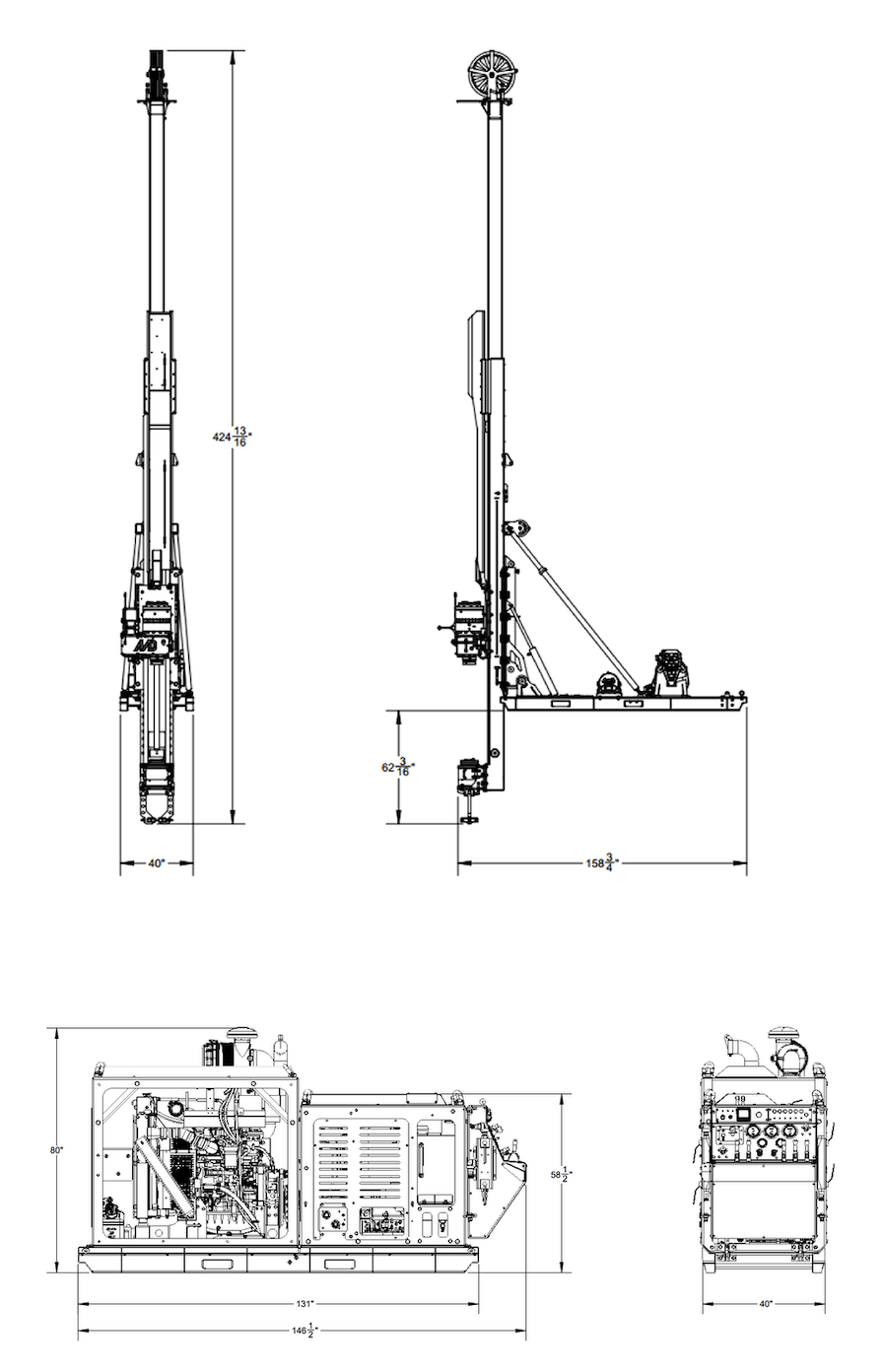

X-10 LONG STROKE DIAMOND DRILL RIG
The X-10 Long Stroke is a versatile and robust solution designed to meet the demands of drilling applications. With its modular design, powerful cylinder, and a range of features, it offers flexibility and reliability for diverse drilling projects.
key features at a glance:
- Both H and P head foot clamp configurations

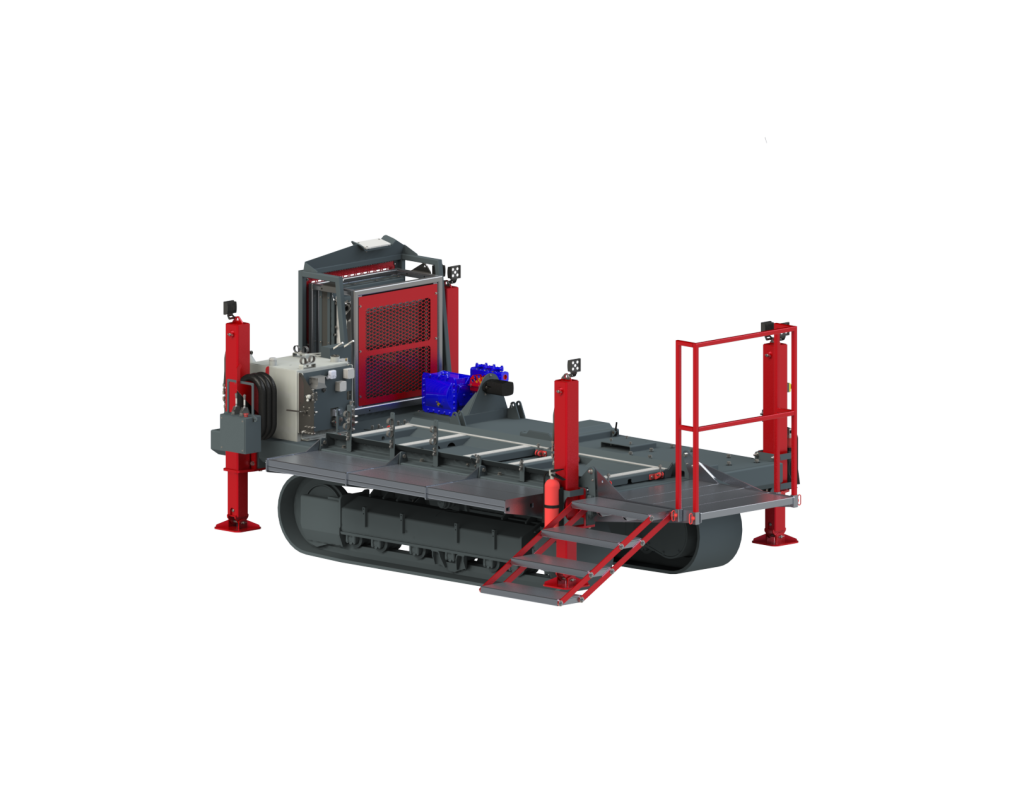

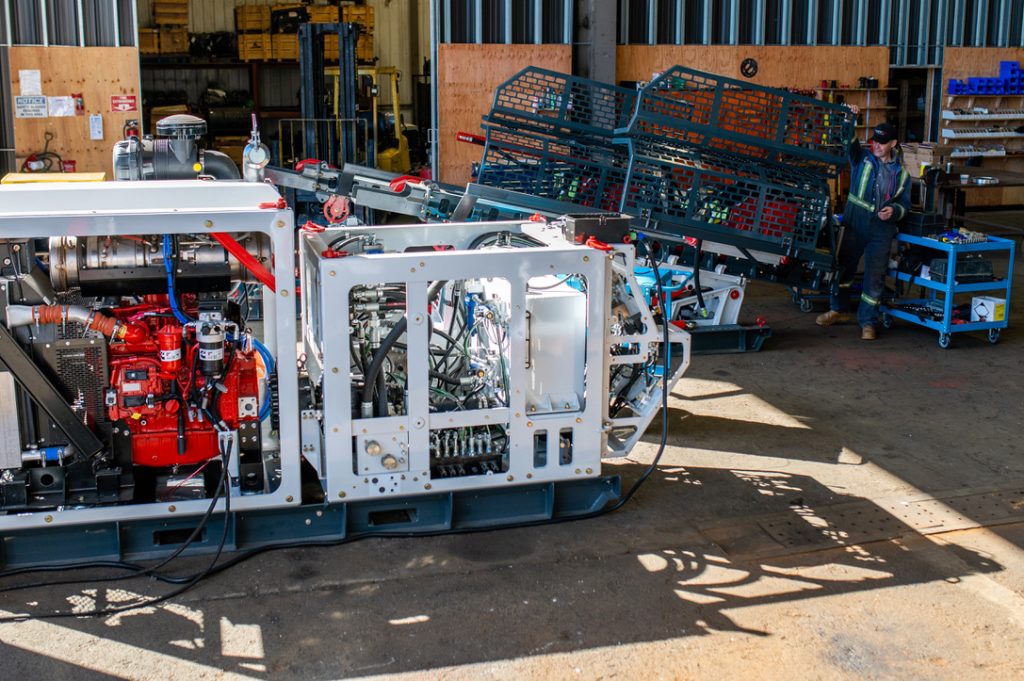

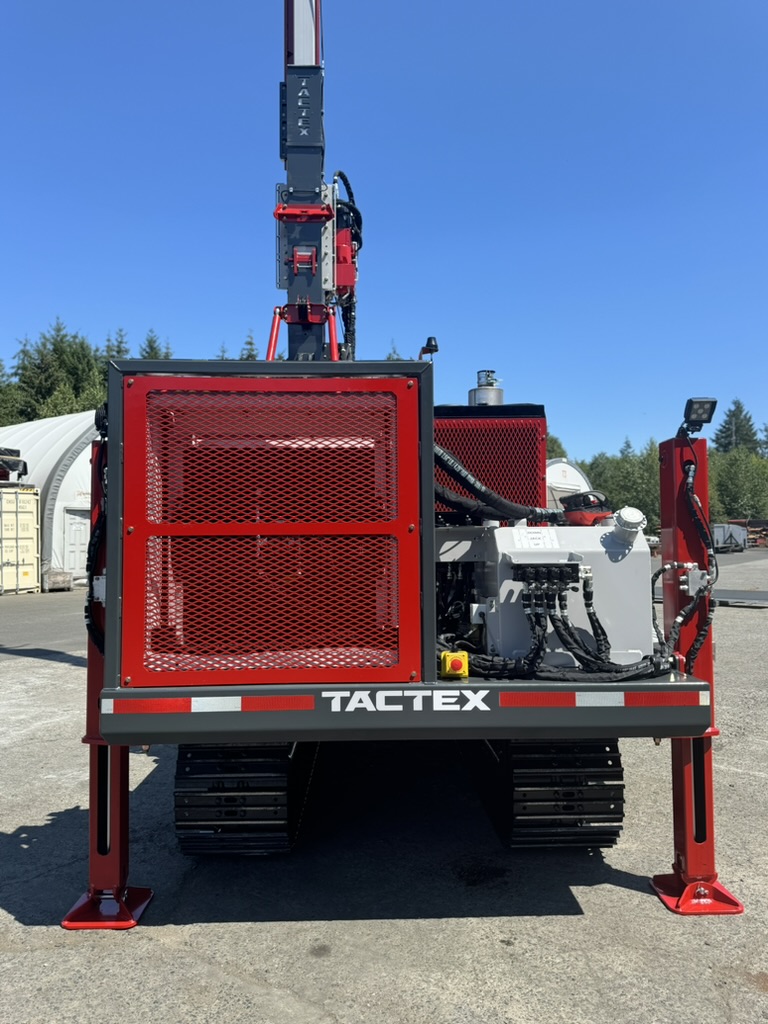

- Designed to be mounted on a fly shack or track platform
- Heavy-duty construction, ensuring longevity and reliability in demanding applications
- Capable of handling a 20' rod pull, allowing for efficient extraction and manipulation of rods during operations

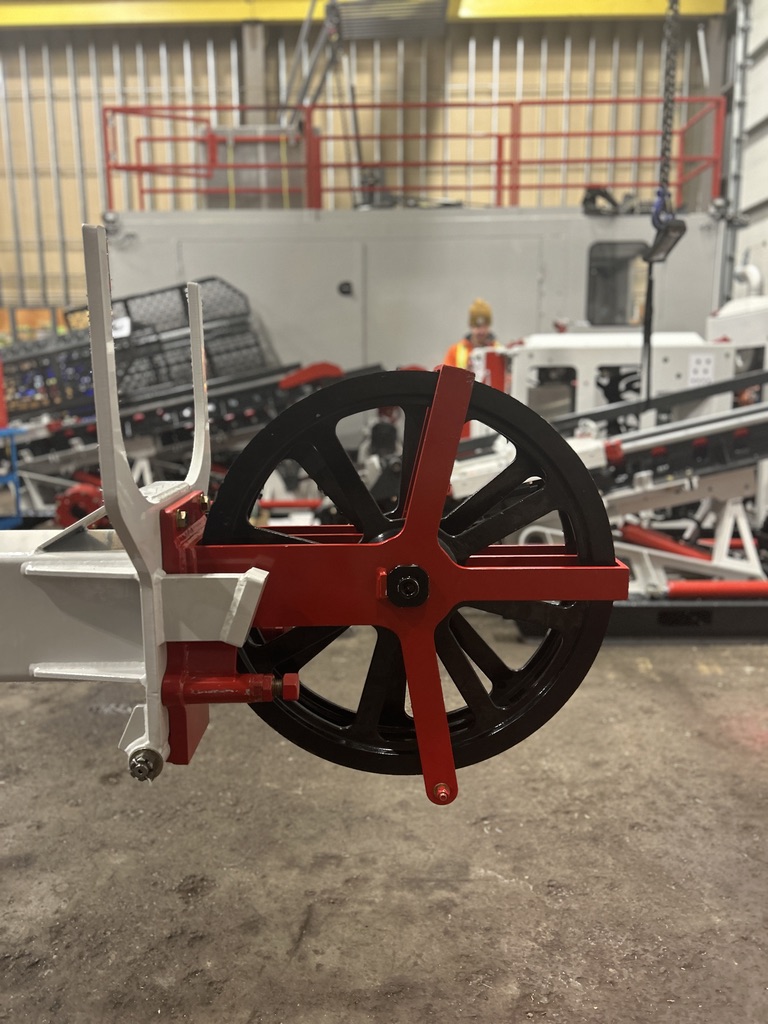

- Enhanced diameter featuring a double sheave for increased strength and stability

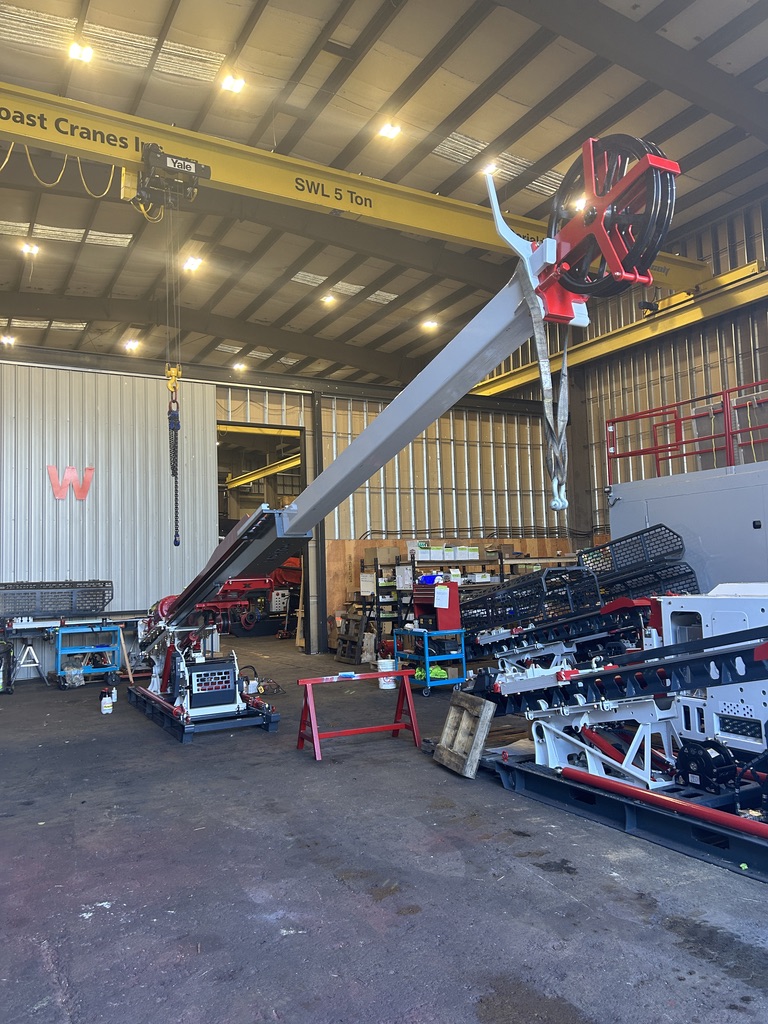

- Equipped with a telescopic tower
Features
Control Panel
Air Cooler
Air Cooler

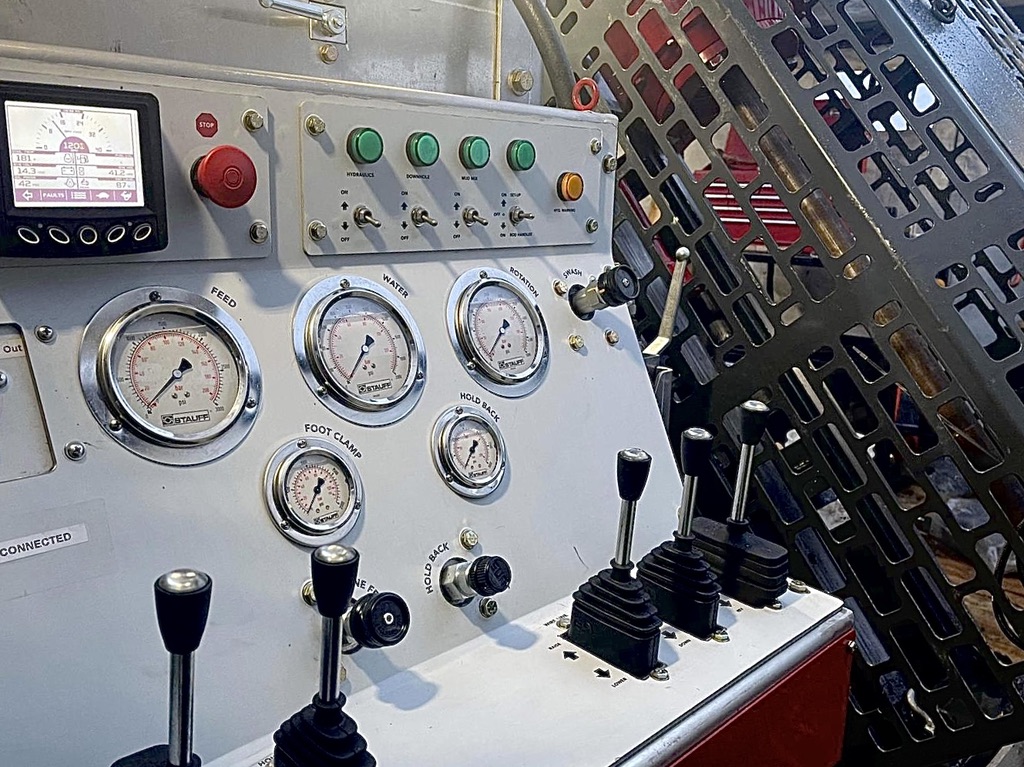

It is crafted from precision-formed, powder-coated aluminum. Equipped with Hydraulic Pilot Controls and offers the choice of synchronized or manual operation of the chuck and rod clamp for precise drilling and drill string manipulation.

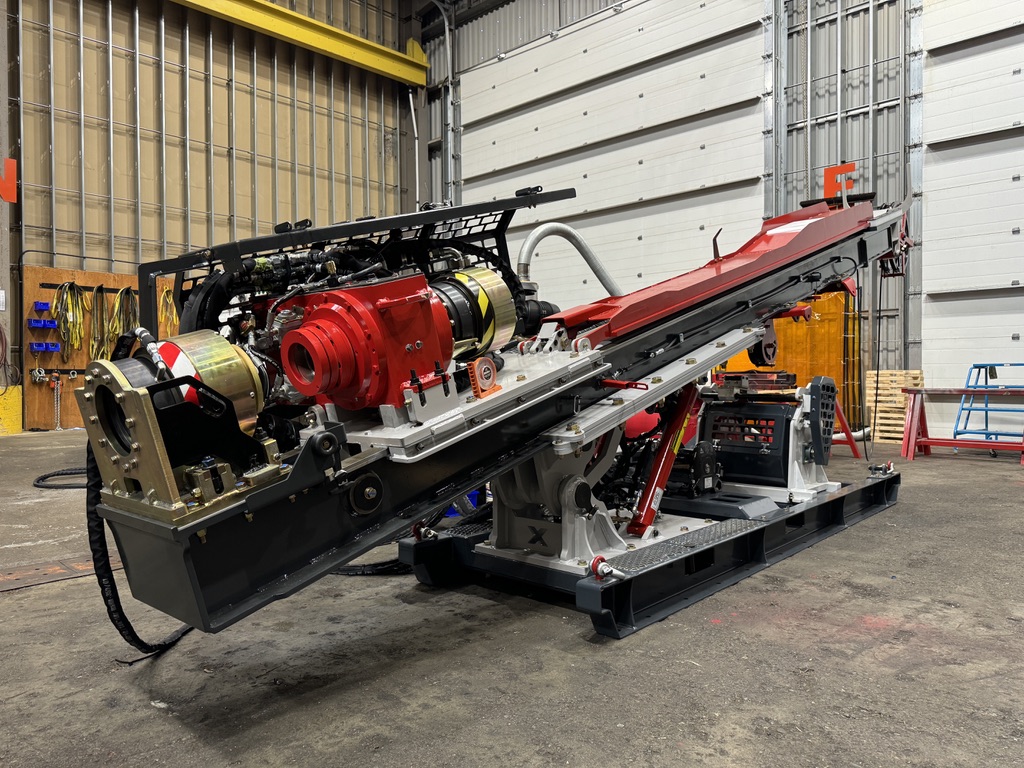

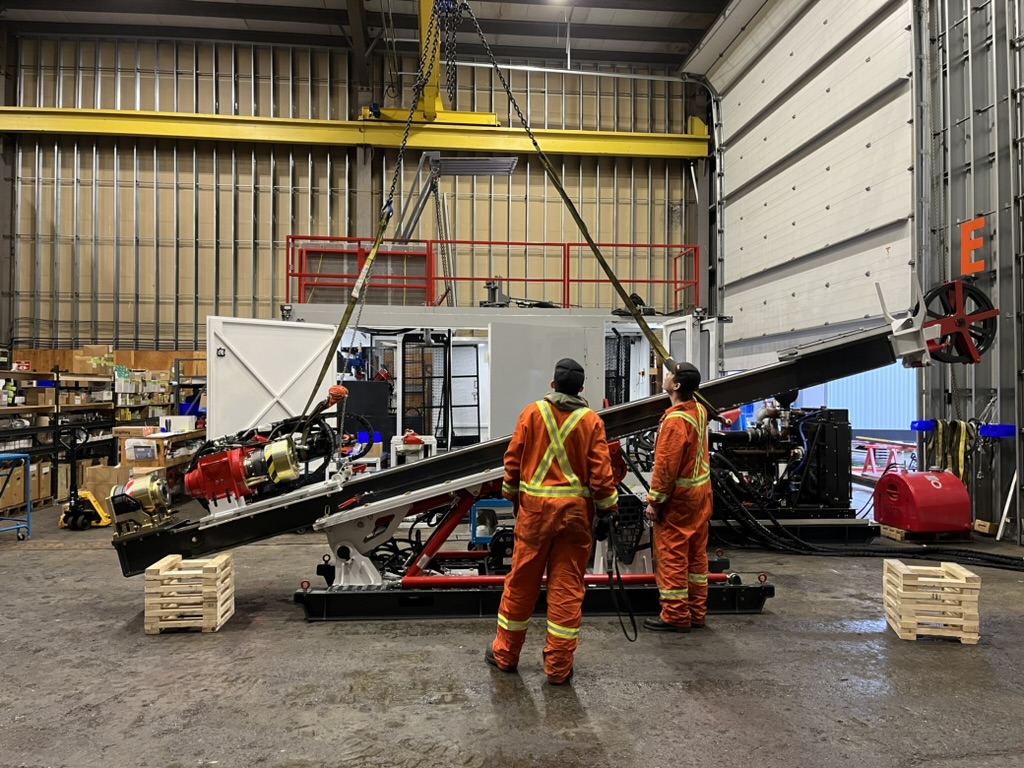

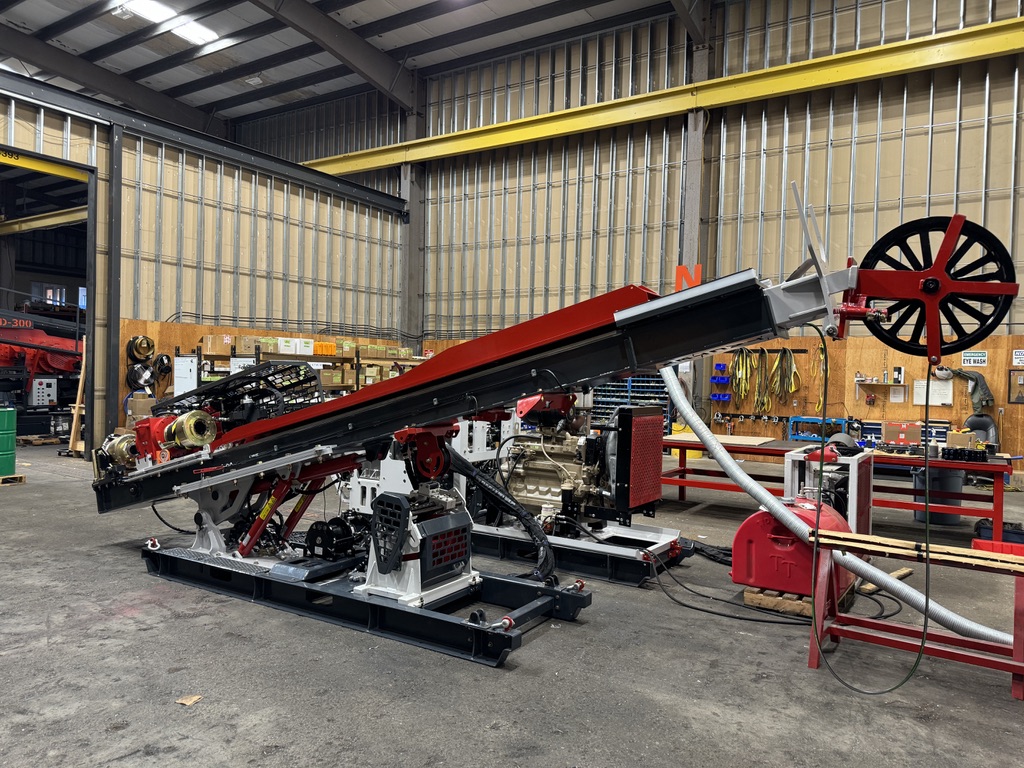

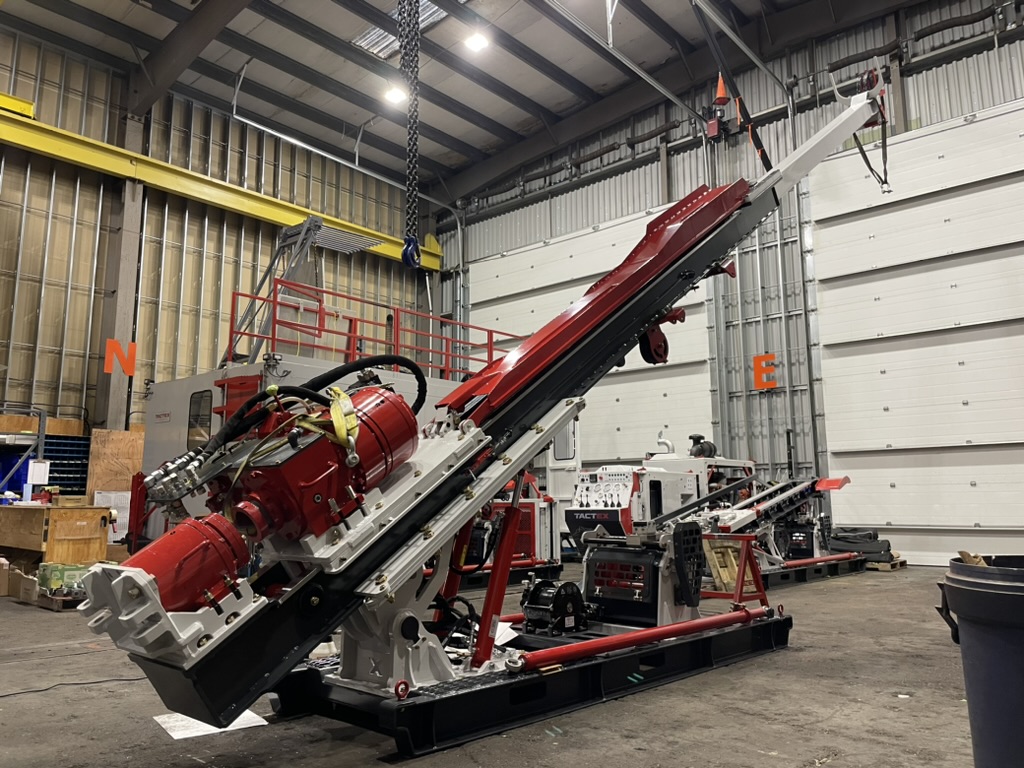

Mast Dump
Mast Dump

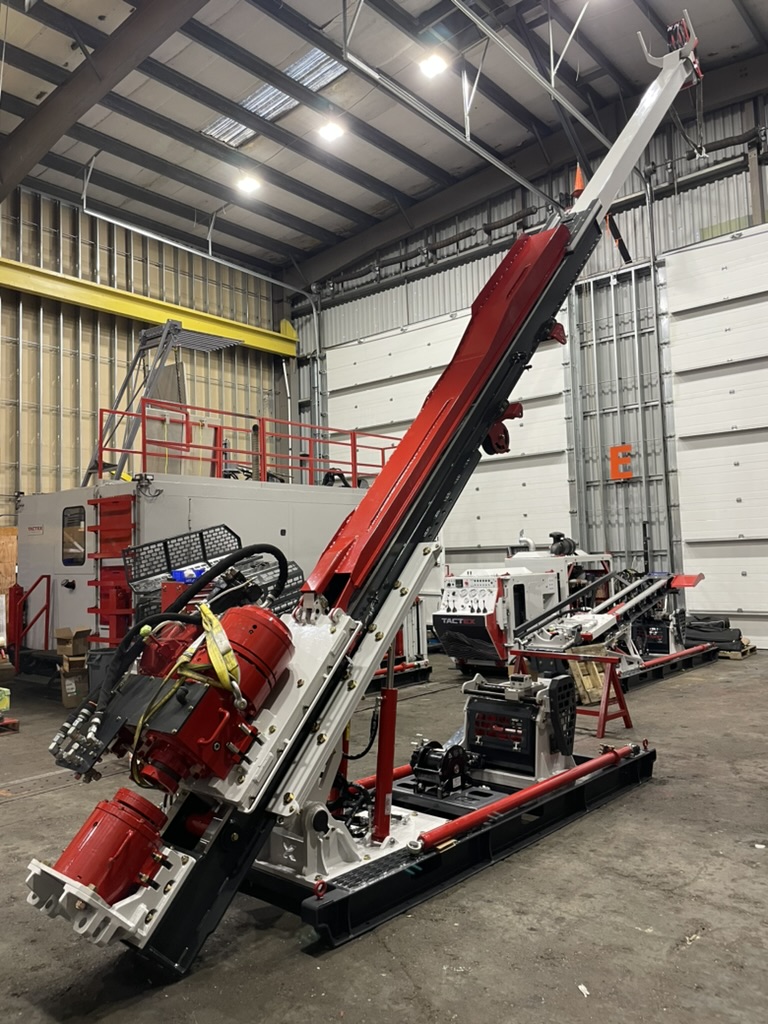

A standout feature of the Longstroke, the 48” mast dump sub frame, is designed to help you reach your targets with ease. This innovative mast dump reduces head height, simplifying rod and core handling. The connection between the feed frame and mast dump section is engineered for optimal bushings and tolerances at the main pivot and hoist cylinders. Despite this precision, the feed frame remains easy and quick to remove, ensuring both efficiency and accuracy in your operations.
Engine
Engine
Engine options include a Tier 4, 4-cylinder turbo charged Cummins engine or a Tier 1, 6-cylinder engine to serve our international clients.
Specifications
132" Feed Stroke
250L double-walled fuel tank
Tier 4 Cummins Turbo Diesel 180 Horsepower 4-cylinder
Breaks down to 2,000hb lifts
Level wind winch 2,000m 3/16" wireline capacity
Rotzler swivel rod hoist
UHMW slide saddle
48" mast dump
Proprietary feed frame design internally reinforced
45 to 90 degree operational angles
50,000 Ibs of pull back
H heads available
P foot clamps and H drill head
Full guarding package available for all applications
Interlock switch for safe drilling operation
Air-cooled hydraulics system
Hydraulic pilot controls
Splitter box pump drive system
Rexroth and Kawasaki triple pump design
Synchronized head and foot clamp with options to isolate functions
One Drill. Multiple Platforms.
Explore custom shacks, rod handling equipment, tanks, fly equipment, and other drill rig components designed to support your operation from mobilization through drilling.
